LTC2937CUHE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2937CUHE#PBF - Volt Supervisor, 4.5V-16.5Vsupp., 1.2V threshold/35 µs delay, Active-High reset, QFN-28

Download LTC2937CUHE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

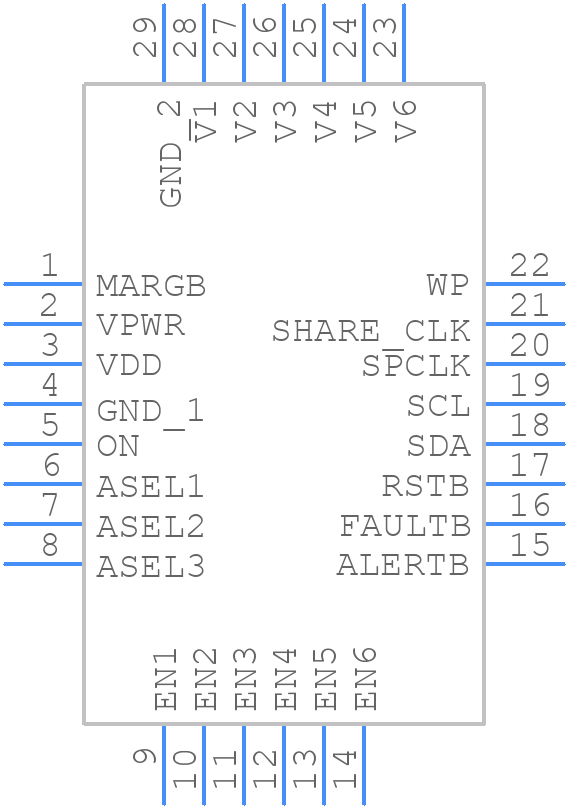

Symbol
LTC2937CUHE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2937CUHE#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UHE Package 28-Lead Plastic QFN (5mm × 6mm)-1
click to zoom
3D Models
LTC2937CUHE#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UHE Package 28-Lead Plastic QFN (5mm × 6mm)-1
click to zoom

LTC2937CUHE#PBF Details

  • Manufacturer Part Number:

    LTC2937CUHE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1932

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    THRESHOLD VOLTAGE= 1.2V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SEQUENCER
