LTC2937MPUHE#PBF - Analog Devices

Description: Programmable Six Channel Sequencer and Voltage Supervisor with EEPROM

Download LTC2937MPUHE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

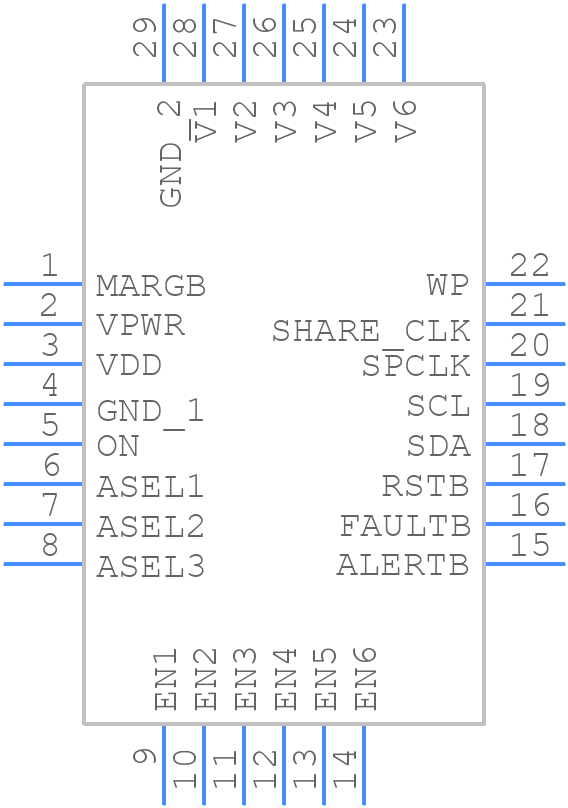

LTC2937MPUHE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2937MPUHE#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UHE Package 28-Lead Plastic QFN (5mm × 6mm)
click to zoom
3D Models
LTC2937MPUHE#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UHE Package 28-Lead Plastic QFN (5mm × 6mm)
click to zoom

LTC2937MPUHE#PBF Details

  • Manufacturer Part Number:

    LTC2937MPUHE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1932

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-06-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.20X.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.2V

  • Width:

    5 mm

LTC2937MPUHE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2937 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor. The ESR of the capacitors should be less than 100mΩ.
  • The maximum ambient temperature range for the LTC2937 is -40°C to 125°C. However, the junction temperature should not exceed 150°C.
  • Yes, the LTC2937 is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured in an automotive-qualified facility.
  • Check the PCB layout, ensure that the input and output capacitors are properly connected, and verify that the input voltage is within the recommended range. Also, check for any noise or interference on the input or output lines. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support.
