LTC2941IMS8E#PBF - Analog Devices

Description: Gas Gauge Li-Ion Automotive 8-Pin MSOP EP Tube

Download LTC2941IMS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

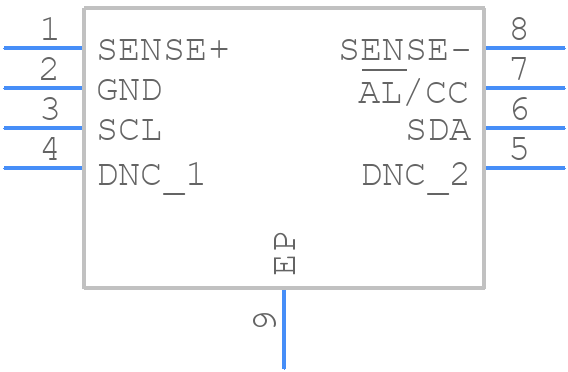

Symbol
LTC2941IMS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2941IMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC2941IMS8E#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC2941IMS8E#PBF Details

  • Manufacturer Part Number:

    LTC2941IMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    VSENSE+ IS THE SUPPLY VOLTAGE

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    4.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC2941IMS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2941 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure accurate current measurements, it's essential to use a sense resistor with a low temperature coefficient, keep the sense resistor close to the device, and use a Kelvin connection to the sense resistor. Additionally, ensure that the input voltage is within the recommended range, and the device is operated within its specified temperature range.
  • The maximum voltage rating for the input pins of the LTC2941 is 36V. Exceeding this voltage can damage the device. It's essential to ensure that the input voltage is within the recommended range to prevent damage and ensure accurate measurements.
  • Yes, the LTC2941 can be used for high-side current sensing. However, it's essential to ensure that the input voltage is within the recommended range, and the device is operated within its specified temperature range. Additionally, a suitable sense resistor and PCB layout are crucial for accurate measurements.
  • Calibration of the LTC2941 involves adjusting the offset and gain of the device to match the sense resistor and the application requirements. This can be done using the device's internal calibration registers or through external calibration using an external microcontroller or calibration circuit.
