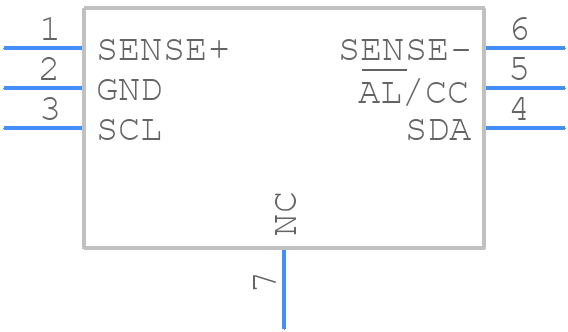

LTC2942IDCB-1#PBF - Analog Devices

LTC2942IDCB-1#PBF Details

• Manufacturer Part Number:

  LTC2942IDCB-1#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  2 X 3 MM, LEAD FREE, PLASTIC, MO-229TBD, DFN-6

• Pin Count:

  6

• Manufacturer Package Code:

  05-08-1715

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  CASE NO: 2048611; LITC-O-A0000240127

• Adjustable Threshold:

  NO

• Analog IC - Other Type:

  BATTERY GAUGE

• JESD-30 Code:

  R-PDSO-N6

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC6,.12,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2 mm
