A good PCB layout for the LTC2945HMS-1#TRPBF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
Calibration of the LTC2945HMS-1#TRPBF involves setting the gain and offset of the device to match the specific battery chemistry and capacity. This can be done by measuring the battery voltage and current at multiple points and adjusting the gain and offset registers accordingly. The datasheet provides a detailed calibration procedure and equations to calculate the gain and offset values.
The LTC2945HMS-1#TRPBF is rated for operation from -40°C to 125°C, but the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within the -20°C to 85°C range for optimal performance and accuracy.
Yes, the LTC2945HMS-1#TRPBF can be used for monitoring multiple batteries in parallel. However, each battery must have its own sense resistor and the device must be configured to measure the total current and voltage of all the batteries. The datasheet provides guidance on how to configure the device for multiple battery monitoring.
The LTC2945HMS-1#TRPBF has a sleep mode that can be enabled to reduce power consumption. The device can be woken up by an external interrupt or by a timer. The wake-up timing is critical to ensure accurate battery monitoring. The datasheet provides guidance on how to configure the sleep mode and wake-up timing to meet specific application requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTC2945HMS-1#TRPBF Overview

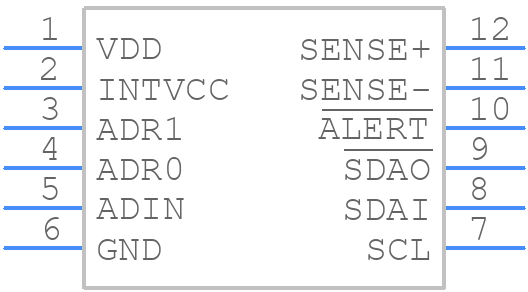

Use the download button to access the LTC2945HMS-1#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29,
or try a keyword search, such as Power Management Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
