LTC2945HUD#TRPBF - Analog Devices

Description: Wide Range I2C Power Monitor

Download LTC2945HUD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

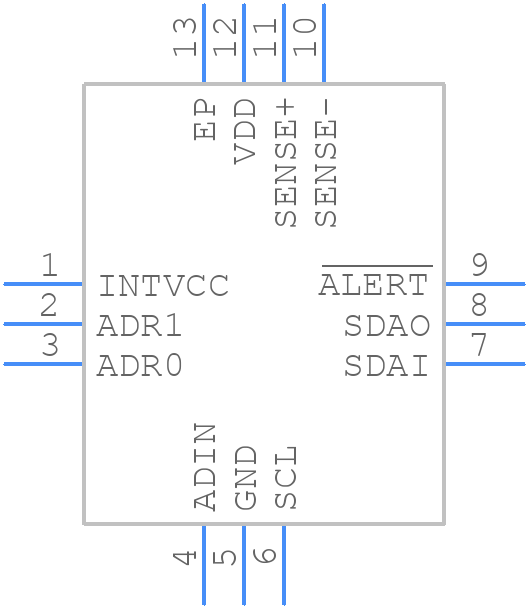

LTC2945HUD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2945HUD#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 12-Lead Plastic QFN (3mm × 3mm)-1
click to zoom
3D Models
LTC2945HUD#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 12-Lead Plastic QFN (3mm × 3mm)-1
click to zoom

LTC2945HUD#TRPBF Details

  • Manufacturer Part Number:

    LTC2945HUD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1855

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LTC2945HUD#TRPBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for the input and output capacitors.
  • Use a sense resistor with a low temperature coefficient and a high power rating. Ensure the sense resistor is placed close to the IC and the Kelvin connection is used to connect the sense resistor to the IC. Calibrate the system by measuring the sense resistor value and adjusting the gain accordingly.
  • The maximum cable length for the I2C interface is dependent on the clock frequency and the capacitance of the cable. As a general guideline, a cable length of up to 10 meters is recommended for a clock frequency of 400 kHz. Use a shielded cable and terminate the bus with pull-up resistors to minimize signal degradation.
  • The thermal shutdown feature is activated when the junction temperature exceeds 150°C. To handle this, ensure good thermal design and heat sinking. Use a thermal interface material and a heat sink with a thermal resistance of less than 10°C/W. Monitor the thermal shutdown flag and take corrective action to reduce the power consumption or improve the thermal design.
  • A low-ESR capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed close to the VIN pin and the GND pin. Use a capacitor with a voltage rating of at least 2x the input voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2945HUD#TRPBF Overview

Use the download button to access the LTC2945HUD#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
