LTC2946IMS#PBF - Analog Devices

Description: Current Sense Amplifiers Wide Rng I2C Pwr, Ch & Energy Mon

Download LTC2946IMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

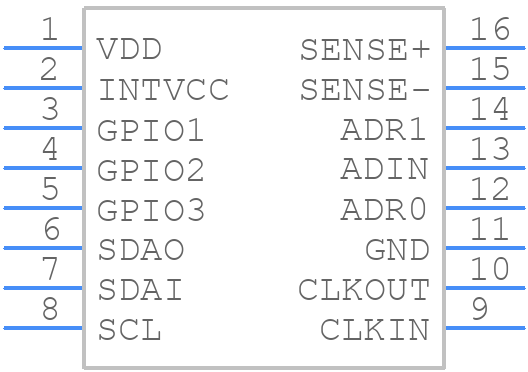

LTC2946IMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2946IMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC DWG # 05-08-1669 Rev A
click to zoom
3D Models
LTC2946IMS#PBF - Analog Devices - 3D model - Small Outline Packages - LTC DWG # 05-08-1669 Rev A
click to zoom

LTC2946IMS#PBF Details

  • Manufacturer Part Number:

    LTC2946IMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.3 mA

  • Supply Voltage-Max (Vsup):

    100 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.3V

  • Width:

    3 mm

LTC2946IMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2946 involves keeping the high-current paths short and wide, using multiple vias to connect the GND pins to a solid ground plane, and placing the input capacitors close to the VIN pin. A 4-layer PCB with a solid ground plane is recommended.
  • Choose input capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the maximum input voltage. X5R or X7R ceramic capacitors or film capacitors are good options. A minimum capacitance of 10uF is recommended.
  • The LTC2946 is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the thermal design of the system.
  • The power dissipation of the LTC2946 can be calculated using the formula: Pd = (VIN x IIN) - (VOUT x IOUT). The junction temperature can be estimated using the thermal resistance (θJA) and the power dissipation.
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it is low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator during shutdown.
