LTC2946MPMS-1#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2946MPMS-1#PBF - Rail-to-Rail System Monitor, Internal Reset, 2.7V-100Vin, MSOP-16

Download LTC2946MPMS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

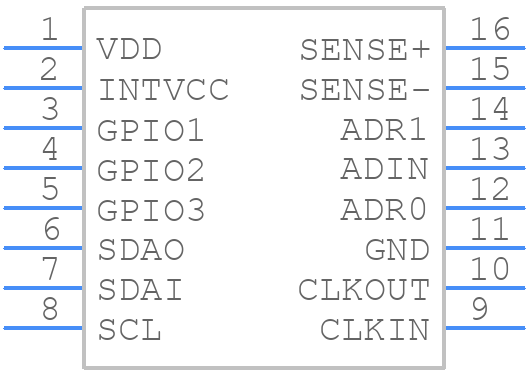

LTC2946MPMS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2946MPMS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom
3D Models
LTC2946MPMS-1#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom

LTC2946MPMS-1#PBF Details

  • Manufacturer Part Number:

    LTC2946MPMS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.3 mA

  • Supply Voltage-Max (Vsup):

    100 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.3V

  • Width:

    3 mm

LTC2946MPMS-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2946 involves keeping the high-frequency switching nodes (VIN, VOUT, and SW) away from sensitive analog nodes (SENSE+, SENSE-, and VCC). Use a solid ground plane, and keep the input and output capacitors close to the IC. A 4-layer board with a dedicated power plane is recommended.
  • To ensure accurate current sensing, use a low-impedance current sense resistor (RSENSE) and place it as close to the IC as possible. Use a Kelvin connection to the sense resistor to minimize parasitic resistance and inductance. Also, ensure that the sense lines are routed away from noisy signals and are not shared with other signals.
  • The maximum ambient temperature for the LTC2946 is 125°C. However, the device can operate up to 150°C with derating. Refer to the datasheet for thermal derating curves.
  • The LTC2946 is designed to operate with a stable input voltage. If the input voltage is not stable, it may affect the accuracy of the current measurement. However, the device can tolerate some input voltage ripple. If the input voltage is not stable, consider using a voltage regulator or a filter to stabilize the input voltage.
  • The power dissipation of the LTC2946 can be calculated using the following formula: PDISS = (VIN x IIN) + (VOUT x IOUT) + (VIN x ISW). Where VIN is the input voltage, IIN is the input current, VOUT is the output voltage, IOUT is the output current, and ISW is the switching current. Refer to the datasheet for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2946MPMS-1#PBF Overview

Use the download button to access the LTC2946MPMS-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits
