LTC2947IUFE#PBF - Analog Devices

Description: POWER/ENERGY MONITOR, 4.5V UVLO, QFN-32; Threshold Voltage:4.5V; No. of Supervisors / Monitors:1Monitors; Supply Voltage Min:4.5V; Supply Voltage Max:15V; Reset Type:Internal; Digital IC Case:QFN; No. of Pins:32Pins; Delay Time:0ns RoHS Compliant: Yes

Download LTC2947IUFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

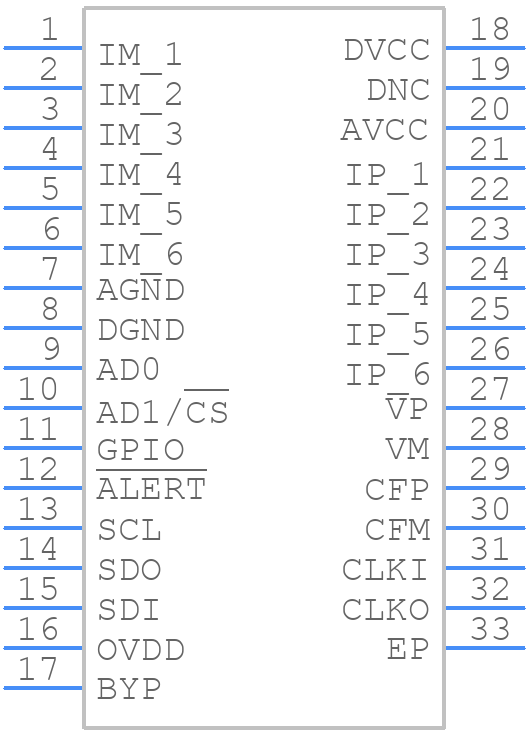

LTC2947IUFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2947IUFE#PBF - Analog Devices PCB footprint - Other - Other - LTC2947IUFE#PBF-2
click to zoom
3D Models
LTC2947IUFE#PBF - Analog Devices - 3D model - Other - LTC2947IUFE#PBF-2
click to zoom

LTC2947IUFE#PBF Details

  • Manufacturer Part Number:

    LTC2947IUFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1938

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC2947IUFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2947 involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input capacitors close to the IC. A 4-layer board with a dedicated power plane is recommended.
  • To ensure accurate current measurements, use a sense resistor with a low temperature coefficient, keep the sense resistor close to the IC, and use a Kelvin connection to the sense resistor. Also, ensure that the sense resistor is properly calibrated.
  • The maximum ambient temperature range for the LTC2947 is -40°C to 125°C. However, the device can operate at a higher temperature range with derating.
  • Yes, the LTC2947 can be used with a switching regulator. However, ensure that the switching frequency is not within the bandwidth of the LTC2947's current sense amplifier to avoid interference.
  • The power dissipation of the LTC2947 can be calculated using the formula: Pd = (VIN x IIN) + (VOUT x IOUT) + (VIN x IQ), where VIN is the input voltage, IIN is the input current, VOUT is the output voltage, IOUT is the output current, and IQ is the quiescent current.
