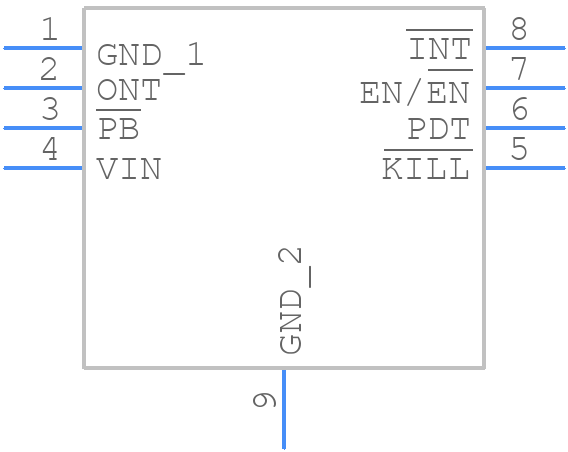

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC2954CDDB-1#TRPBF
Part Number LTC2954CDDB-1#TRPBF
Manufacturer Analog Devices
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 8-Lead Plastic DFN (3mm × 2mm)
Released Date Aug 11, 2026
Last Modified Date Aug 11, 2026 6:55 AM UTC
Pinout / Pin List Click Here (Member Only)

LTC2954CDDB-1#TRPBF Details

Manufacturer Part Number:
LTC2954CDDB-1#TRPBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
3 X 2 MM, LEAD FREE, PLASTIC, M0-229WECD-1, DFN-8
Pin Count:
8
Manufacturer Package Code:
05-08-1702
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Adjustable Threshold:
YES
Analog IC - Other Type:
PUSHBUTTON ON/OFF CONTROLLER
JESD-30 Code:
R-PDSO-N8
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
26.4 V
Supply Voltage-Min (Vsup):
2.7 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
2 mm
