LTC2954IDDB-1#TRPBF - Analog Devices

Description: Power Supply Controller Push Button, On/Off Controller 8-DFN (3x2),–0.3V to 33V –65°C to 125°C

Download LTC2954IDDB-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

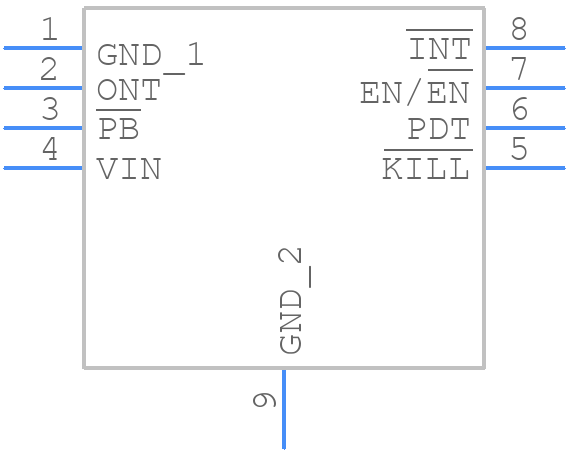

LTC2954IDDB-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2954IDDB-1#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDB Package 8-Lead Plastic DFN (3mm × 2mm)_2025
click to zoom
3D Models
LTC2954IDDB-1#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DDB Package 8-Lead Plastic DFN (3mm × 2mm)_2025
click to zoom

LTC2954IDDB-1#TRPBF Details

  • Manufacturer Part Number:

    LTC2954IDDB-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 2 MM, LEAD FREE, PLASTIC, M0-229WECD-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1702

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    PUSHBUTTON ON/OFF CONTROLLER

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    26.4 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC2954IDDB-1#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2954IDDB-1#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • Proper thermal management for the LTC2954IDDB-1#TRPBF involves providing a heat sink or a thermal pad on the exposed pad of the device, and ensuring good airflow around the device. The thermal pad should be connected to a solid ground plane to dissipate heat effectively.
  • The recommended input capacitor value for the LTC2954IDDB-1#TRPBF is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 2x the input voltage. A ceramic or film capacitor is recommended, such as an X5R or X7R dielectric capacitor.
  • The LTC2954IDDB-1#TRPBF can be configured for a specific output voltage by connecting a resistive divider network between the output and the FB pin, and adjusting the resistors to set the desired output voltage. The datasheet provides a formula to calculate the required resistor values.
  • The maximum input voltage that the LTC2954IDDB-1#TRPBF can handle is 36V. Exceeding this voltage can damage the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2954IDDB-1#TRPBF Overview

Use the download button to access the LTC2954IDDB-1#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
