LTC2959IDDB#TRPBF - Analog Devices

Description: Ultra-Low Power Battery Gas Gauge

Download LTC2959IDDB#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

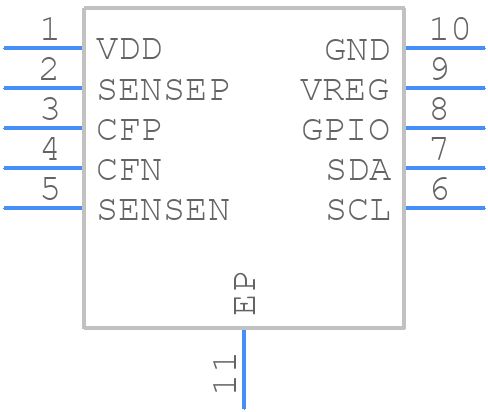

LTC2959IDDB#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2959IDDB#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDB Package 10-Lead Plastic DFN (3mm × 2mm)-
click to zoom
3D Models
LTC2959IDDB#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DDB Package 10-Lead Plastic DFN (3mm × 2mm)-
click to zoom

LTC2959IDDB#TRPBF Details

  • Manufacturer Part Number:

    LTC2959IDDB#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1698

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, EXTREMELY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.8 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.45V

  • Width:

    2 mm

LTC2959IDDB#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2959IDDB involves keeping the power and ground planes separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, the layout should minimize noise and EMI by keeping sensitive nodes away from noisy signals.
  • The input and output capacitors should be chosen based on the specific application requirements. A general rule of thumb is to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The capacitor voltage rating should be at least 1.5 times the maximum input voltage.
  • The maximum ambient temperature range for the LTC2959IDDB is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
  • The LTC2959IDDB can be programmed for a specific output voltage using the FB pin. The output voltage is set by connecting a resistive divider from the output to the FB pin, with the ratio of the resistors determining the output voltage. The datasheet provides a formula to calculate the resistor values for a specific output voltage.
  • The maximum output current capability of the LTC2959IDDB is 2A. However, the device can deliver higher currents for short durations. It's essential to ensure that the device is operated within the recommended current range to prevent overheating and ensure reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2959IDDB#TRPBF Overview

Use the download button to access the LTC2959IDDB#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits
