LTC2962HUD#TRPBF - Analog Devices

Description: ?0.5% Accurate Quad Configurable Supervisor16-Lead (3mm × 3mm) Plastic QFN –

Download LTC2962HUD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

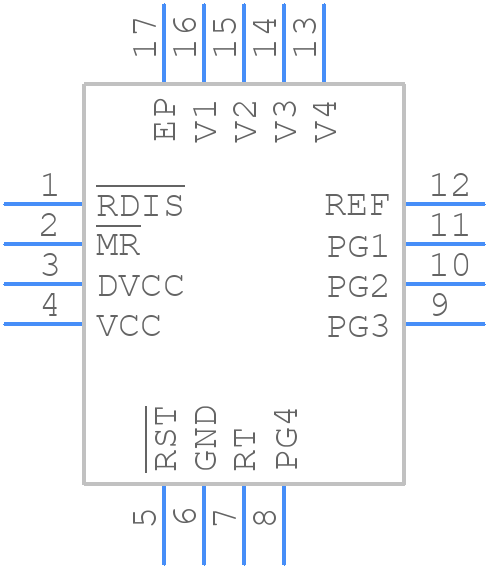

LTC2962HUD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2962HUD#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm) (Reference LTC DWG # 05-08-1691 Rev Ø)ss
click to zoom
3D Models
LTC2962HUD#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm) (Reference LTC DWG # 05-08-1691 Rev Ø)ss
click to zoom

LTC2962HUD#TRPBF Details

  • Manufacturer Part Number:

    LTC2962HUD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1738

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-08-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2962HUD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2962HUD involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer board with a dedicated power plane is recommended. Refer to the Analog Devices application note AN136 for more details.
  • To ensure accurate temperature measurement, make sure to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Also, consider using a thermocouple with a high-temperature rating and a low-thermal-mass design.
  • The maximum cable length for the thermocouple input of the LTC2962HUD depends on the type of thermocouple and the noise environment. As a general rule, keep the cable length as short as possible (less than 10 feet) and use twisted-pair or shielded cable to minimize noise pickup.
  • Yes, the LTC2962HUD can be used with non-standard thermocouple types, but you may need to adjust the cold-junction compensation and the thermocouple calibration. Consult the datasheet and application notes for more information on custom thermocouple configurations.
  • To handle EMI with the LTC2962HUD, use a shielded enclosure, keep the device away from high-frequency sources, and use EMI filters on the power supply and input lines. Also, consider using a common-mode choke on the thermocouple input lines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2962HUD#TRPBF Overview

Use the download button to access the LTC2962HUD#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
