LTC2964HUDC#PBF - Analog Devices

Description: Supervisor Open-Drain or Push-Pull 4 Channel 20-QFN (3x4)

Download LTC2964HUDC#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

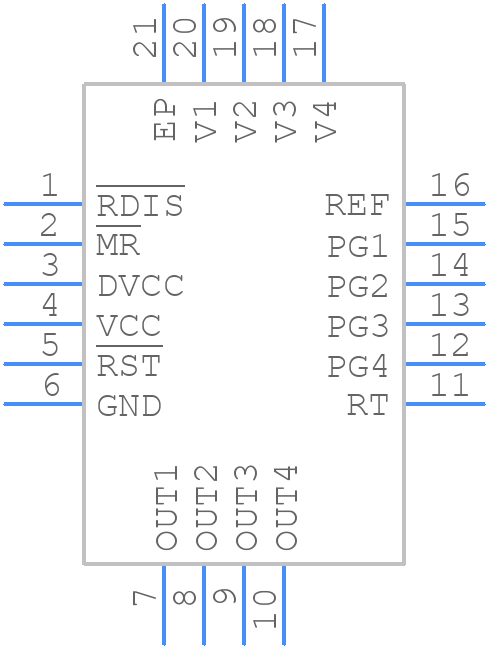

LTC2964HUDC#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2964HUDC#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead Plastic QFN (3mm × 4mm)
click to zoom
3D Models
LTC2964HUDC#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 20-Lead Plastic QFN (3mm × 4mm)
click to zoom

LTC2964HUDC#PBF Details

  • Manufacturer Part Number:

    LTC2964HUDC#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1752

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-08-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2964HUDC#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2964HUDC involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the input capacitor and to minimize the length of the traces between the device and the capacitors.
  • To ensure accurate voltage monitoring with the LTC2964HUDC, it's essential to use a high-accuracy voltage reference, such as the internal 2.5V reference, and to minimize the noise on the voltage input pins. Additionally, the input voltage range should be within the specified range, and the device should be operated within the recommended temperature range.
  • The LTC2964HUDC can sink or source up to 10mA of current per output pin, but it's recommended to limit the current to 5mA or less to ensure reliable operation and to prevent overheating.
  • The LTC2964HUDC can be programmed using the I2C interface to set custom voltage monitoring thresholds. The device has a 16-bit register that allows the user to set the threshold voltage, and the user can also set the hysteresis and the timeout period for the voltage monitoring function.
  • The LTC2964HUDC is compatible with 3.3V or 5V logic levels, but it's essential to ensure that the input voltage is within the specified range and that the device is operated within the recommended temperature range.
