LTC2980AY-24#PBF - Analog Devices

Description: 24-Channel PMBus Power System Manager

Download LTC2980AY-24#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTC2980AY-24#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

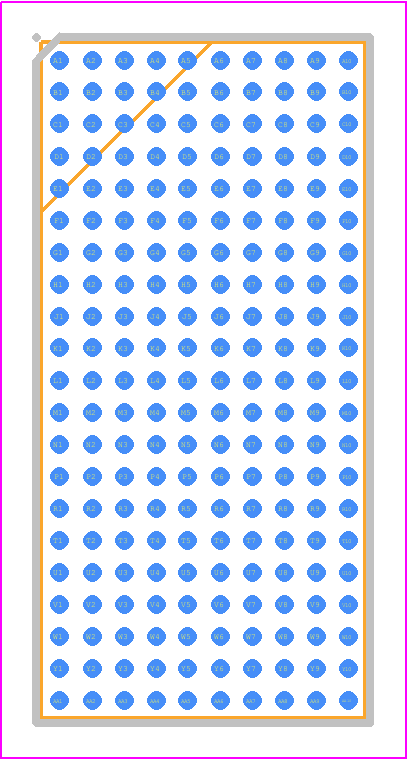

LTC2980AY-24#PBF - Analog Devices PCB footprint - BGA - BGA - BGA Package 210-Lead (16.9mm × 8.1mm × 1.52mm)_2025-1
click to zoom
3D Models
LTC2980AY-24#PBF - Analog Devices - 3D model - BGA - BGA Package 210-Lead (16.9mm × 8.1mm × 1.52mm)_2025-1
click to zoom

LTC2980AY-24#PBF Details

  • Manufacturer Part Number:

    LTC2980AY-24#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-210

  • Pin Count:

    210

  • Manufacturer Package Code:

    05-08-1828

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:Y;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PBGA-B210

  • Length:

    16.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    210

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA210,10X21,31

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Seated Height-Max:

    1.72 mm

  • Supply Current-Max (Isup):

    13 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    8.1 mm

LTC2980AY-24#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2980AY-24#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy temperature sensor, and minimize thermal gradients. Additionally, the device should be mounted in a way that minimizes thermal resistance between the device and the measured object.
  • The maximum cable length for the LTC2980AY-24#PBF's remote sense lines depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible (less than 10 inches) to minimize noise and ensure accurate measurements.
  • Yes, the LTC2980AY-24#PBF is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to prevent mechanical stress and damage.
  • To troubleshoot issues with the LTC2980AY-24#PBF, start by checking the power supply, ensuring that the device is properly configured, and verifying that the input signals are within the specified range. If the issue persists, consult the datasheet and application notes, and consider contacting Analog Devices' technical support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2980AY-24#PBF Overview

Use the download button to access the LTC2980AY-24#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits
