LTC2980CY#PBF - Analog Devices

Description: 16-Channel PMBus Power System Manager

Download LTC2980CY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTC2980CY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

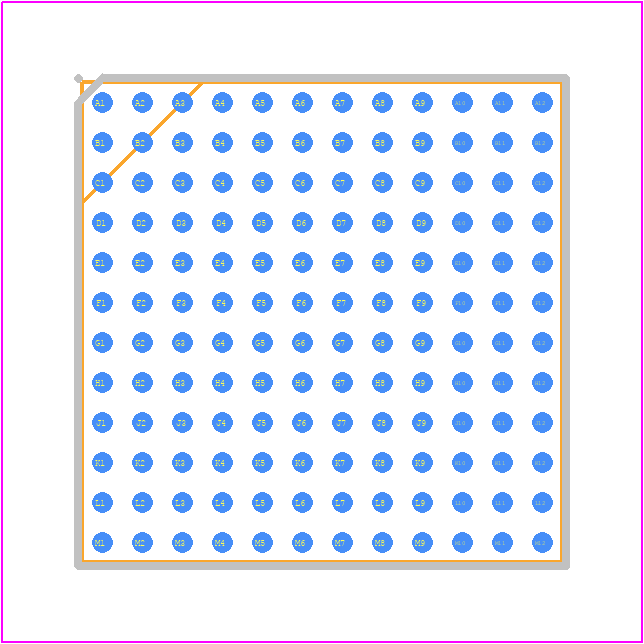

LTC2980CY#PBF - Analog Devices PCB footprint - BGA - BGA - BGA Package 144-Lead (12mm × 12mm × 1.29mm)
click to zoom
3D Models
LTC2980CY#PBF - Analog Devices - 3D model - BGA - BGA Package 144-Lead (12mm × 12mm × 1.29mm)
click to zoom

LTC2980CY#PBF Details

  • Manufacturer Part Number:

    LTC2980CY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-144

  • Pin Count:

    144

  • Manufacturer Package Code:

    05-08-1967

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PBGA-B144

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA144,12X12,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.34 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

LTC2980CY#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star-grounding configuration to minimize noise and ensure that the analog and digital circuits are separated.
  • To ensure accurate temperature measurement, use a thermocouple with a high-quality junction and ensure good thermal contact between the thermocouple and the device under test. Also, calibrate the thermocouple and the LTC2980CY#PBF together to minimize errors.
  • The maximum cable length for the thermocouple connections to the LTC2980CY#PBF is 10 meters (33 feet). Longer cable lengths can introduce noise and errors in the temperature measurement.
  • The LTC2980CY#PBF is optimized for use with thermocouples, but it can be used with other types of temperature sensors such as thermopiles, RTDs, or thermistors with some modifications to the circuit and software. However, the accuracy and performance may vary depending on the sensor type and configuration.
  • To minimize EMI and RFI, use a shielded enclosure, keep the analog and digital circuits separate, and use a common-mode choke or ferrite beads on the thermocouple connections. Also, ensure that the PCB layout is designed to minimize radiation and susceptibility to external interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2980CY#PBF Overview

Use the download button to access the LTC2980CY#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
