LTC2991CMS#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2991CMS#PBF - Monitor, Active-High Reset, 8-Monitors, 2.9V-5.5Vin, MSOP-16

Download LTC2991CMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

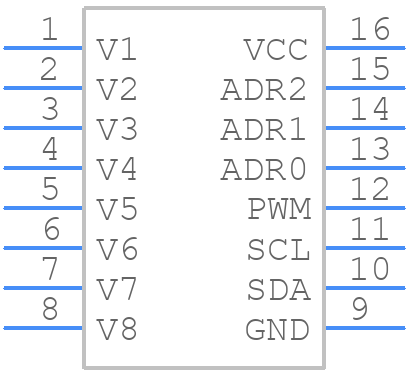

LTC2991CMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2991CMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom
3D Models
LTC2991CMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom

LTC2991CMS#PBF Details

  • Manufacturer Part Number:

    LTC2991CMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2991CMS#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for the VCC bypass and place it close to the VCC pin.
  • Calibration involves trimming the internal voltage reference and current sense amplifier gains. Use the CAL pin to adjust the voltage reference and the ISENSE pin to adjust the current sense amplifier gain. Refer to the datasheet for the calibration procedure.
  • The maximum cable length depends on the wire gauge and the sense current. As a rule of thumb, use a 20 AWG wire for up to 10 feet of cable length. To compensate for voltage drops, use a 4-wire Kelvin connection and add a sense resistor (Rs) in series with the sense line.
  • Use the OV and UV pins to detect overvoltage and undervoltage conditions. The OV pin goes high when the input voltage exceeds the overvoltage threshold, and the UV pin goes low when the input voltage falls below the undervoltage threshold. Use these signals to trigger external circuitry to protect the system.
  • Power up the VCC pin first, followed by the VIN pin. Ensure that the VCC pin is stable before applying the VIN voltage. This sequence prevents latch-up and ensures proper device operation.
