LTC2992CMS#PBF - Analog Devices

Description: Dual Wide Range Power Monitor

Download LTC2992CMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

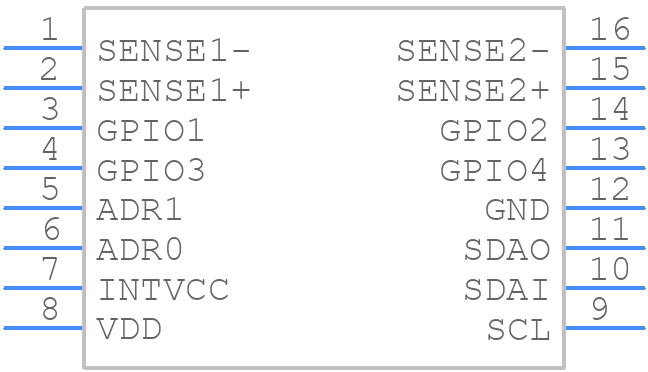

LTC2992CMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2992CMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS PACKAGE 16-LEAD PLASTIC MSOP_1
click to zoom
3D Models
LTC2992CMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS PACKAGE 16-LEAD PLASTIC MSOP_1
click to zoom

LTC2992CMS#PBF Details

  • Manufacturer Part Number:

    LTC2992CMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.6 mA

  • Supply Voltage-Max (Vsup):

    100 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2992CMS#PBF Frequently Asked Questions (FAQs)

  • The datasheet provides general guidelines, but for optimal performance, it's recommended to place the device close to the temperature sensing point, use a solid ground plane, and keep the device away from high-current carrying traces and heat sources. A 4-layer PCB with a dedicated thermal layer can also help to improve accuracy.
  • The device has an internal calibration, but for high-accuracy applications, external calibration may be necessary. This can be done by measuring the device's output at multiple temperature points and creating a custom lookup table or using a polynomial equation to correct for non-linearity.
  • The maximum cable length depends on the cable type, noise environment, and desired accuracy. As a general rule, keep the cable length as short as possible (<10cm) for optimal performance. For longer cables, use shielded twisted-pair cables and consider adding noise filtering or signal conditioning.
  • Yes, but with caution. The device is designed to operate in industrial environments, but high-vibration or high-shock conditions can affect its accuracy. Consider using additional mechanical support, such as a rigid PCB or a vibration-dampening material, to minimize the impact of vibrations on the device.
  • Follow proper PCB design and layout practices, such as using a solid ground plane, keeping sensitive traces away from noise sources, and using shielding or filtering where necessary. Additionally, ensure that the device is properly decoupled and that the system meets relevant EMC standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2992CMS#PBF Overview

Use the download button to access the LTC2992CMS#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
