LTC2992CMS-1#PBF - Analog Devices

Description: Dual Wide Range Power Monitor

Download LTC2992CMS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

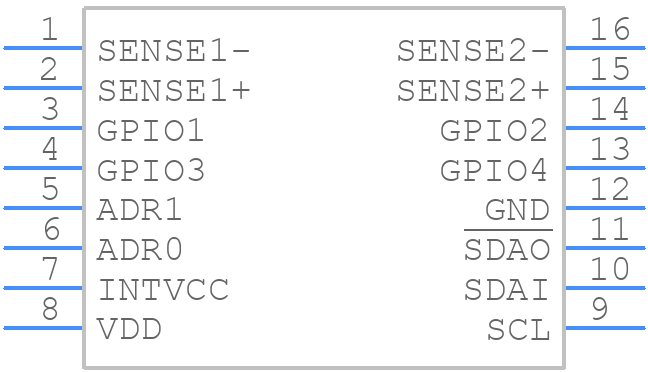

LTC2992CMS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2992CMS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead 1Plastic MSOP
click to zoom
3D Models
LTC2992CMS-1#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead 1Plastic MSOP
click to zoom

LTC2992CMS-1#PBF Details

  • Manufacturer Part Number:

    LTC2992CMS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.6 mA

  • Supply Voltage-Max (Vsup):

    100 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2992CMS-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2992 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer board with a dedicated layer for the analog signals.
  • The LTC2992 does not require calibration for voltage measurements, as it has an internal voltage reference. However, for temperature measurements, calibration is required. This can be done by using an external temperature sensor and adjusting the offset and gain registers to match the sensor's output.
  • The maximum cable length for the I2C interface of the LTC2992 depends on the clock frequency and the capacitance of the cable. As a general rule, the cable length should be limited to 10 inches (25 cm) for a 400 kHz clock frequency. For longer cable lengths, it's recommended to use a repeater or a buffer.
  • No, the LTC2992 is designed to operate from a 2.7V to 5.5V power supply, but it's not recommended to use it with a 5V power supply. The device's internal voltage regulator is not designed to handle 5V, and it may cause the device to malfunction or overheat.
  • The thermal shutdown feature of the LTC2992 is designed to protect the device from overheating. If the device temperature exceeds 150°C, it will shut down and reset when the temperature drops below 140°C. To handle this feature, it's recommended to implement a thermal monitoring system and take corrective action to reduce the device temperature.
