LTC2992HDE#PBF - Analog Devices

Description: Dual Wide Range Power Monitor

Download LTC2992HDE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

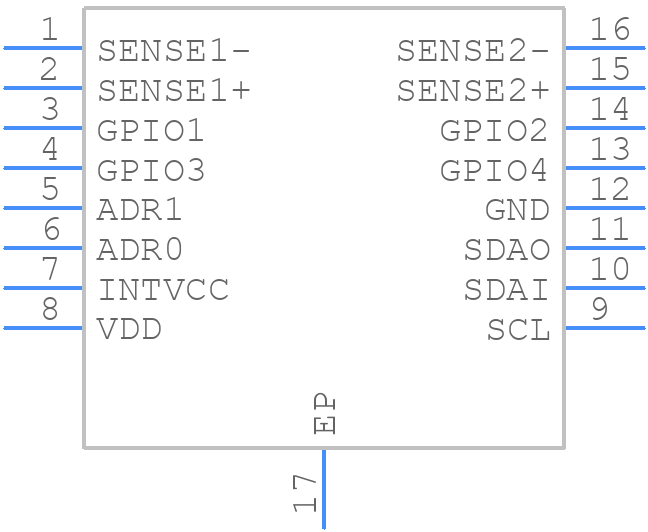

Symbol
LTC2992HDE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2992HDE#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE Package 16-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LTC2992HDE#PBF - Analog Devices - 3D model - Small Outline No-lead - DE Package 16-Lead Plastic DFN (4mm × 3mm)
click to zoom

LTC2992HDE#PBF Details

  • Manufacturer Part Number:

    LTC2992HDE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1732

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    SEATED HT-CALCULATED

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.12,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.6 mA

  • Supply Voltage-Max (Vsup):

    100 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2992HDE#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2992HDE involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure accurate voltage monitoring, it is essential to use a high-accuracy voltage reference, ensure proper PCB layout, and minimize noise coupling. Additionally, the input voltage range should be within the specified range, and the input impedance should be matched to the device's input impedance.
  • The maximum allowed voltage on the input pins of the LTC2992HDE is 36V. Exceeding this voltage can damage the device. It is essential to ensure that the input voltage is within the specified range to prevent damage and ensure accurate measurements.
  • The LTC2992HDE is designed for low-frequency applications, and its bandwidth is limited to 100 kHz. Using it for high-frequency applications may result in inaccurate measurements and reduced accuracy. For high-frequency applications, a different device may be more suitable.
  • Calibration of the LTC2992HDE involves adjusting the internal voltage reference and gain settings. The device should be calibrated at the factory default settings, and any adjustments should be made according to the datasheet and application notes. It is essential to follow the recommended calibration procedure to ensure optimal performance.
