LTC2992IDE#TRPBF - Analog Devices

Description: Dual Wide Range Power Monitor

Download LTC2992IDE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

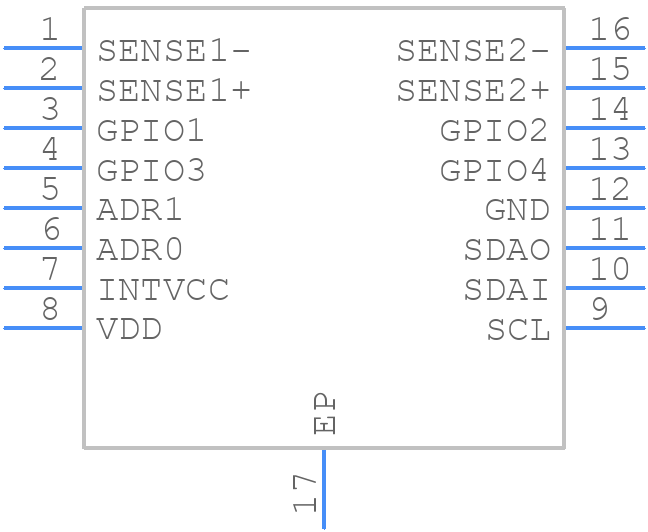

LTC2992IDE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2992IDE#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE Package 16-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LTC2992IDE#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DE Package 16-Lead Plastic DFN (4mm × 3mm)
click to zoom

LTC2992IDE#TRPBF Details

  • Manufacturer Part Number:

    LTC2992IDE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1732

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    SEATED HT-CALCULATED

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.12,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.6 mA

  • Supply Voltage-Max (Vsup):

    100 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2992IDE#TRPBF Frequently Asked Questions (FAQs)

  • The LTC2992 can be connected to the same I2C bus as other devices, but the maximum number of devices depends on the bus capacitance and the pull-up resistor values. As a general rule, up to 10 devices can be connected to the same bus, but it's recommended to check the I2C bus loading and signal integrity to ensure reliable operation.
  • If the input voltage exceeds the maximum rating, it's recommended to use an external voltage regulator or a voltage divider to reduce the input voltage to within the specified range. Additionally, ensure that the input voltage does not exceed the absolute maximum rating to prevent damage to the device.
  • For optimal performance, it's recommended to follow a good layout and placement practice, such as keeping the device close to the power source, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, ensure that the device is placed in a way that minimizes thermal coupling and electromagnetic interference.
  • The LTC2992 has an internal calibration mechanism, but it's recommended to perform an external calibration to ensure accurate measurements. This can be done by applying a known voltage and current to the inputs and adjusting the calibration registers accordingly. Refer to the datasheet and application notes for more information on calibration procedures.
  • The typical power consumption of the LTC2992 is around 1.5mA, but it can vary depending on the operating frequency, input voltage, and output loading. Refer to the datasheet for more information on power consumption and thermal characteristics.
