LTC3300ILXE-2#WPBF - Analog Devices

Description: Addressable High Efficiency Bidirectional Multicell Battery Balancer

Download LTC3300ILXE-2#WPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

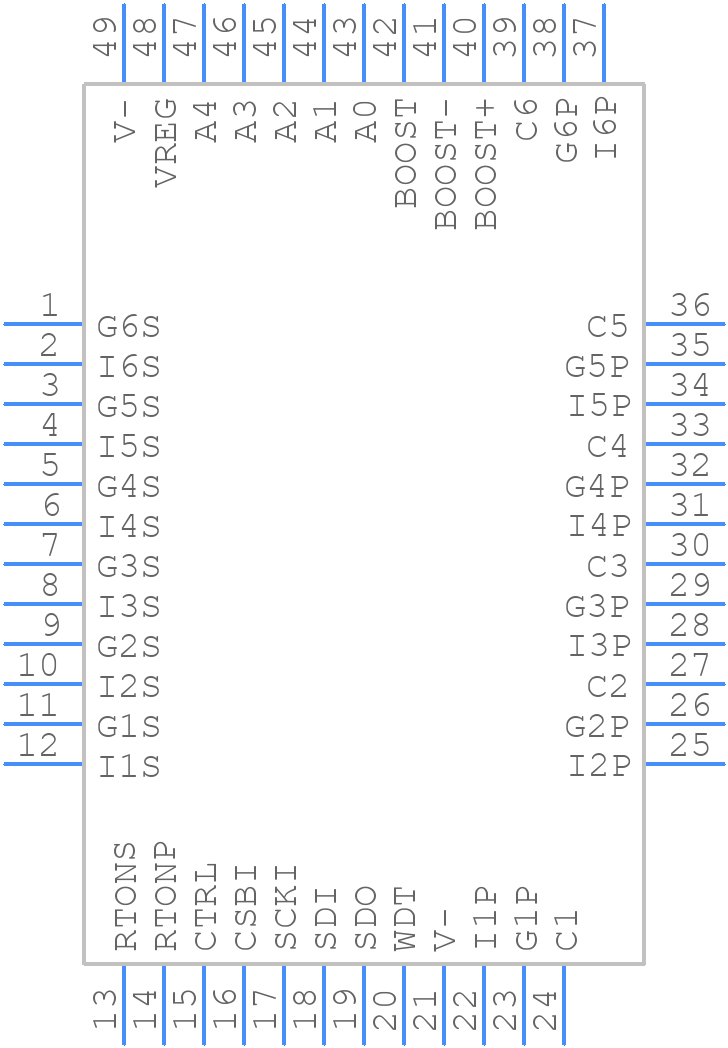

LTC3300ILXE-2#WPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3300ILXE-2#WPBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - LXE Package 48-Lead Plastic Exposed Pad LQFP (7mm × 7mm)
click to zoom
3D Models
LTC3300ILXE-2#WPBF - Analog Devices - 3D model - Quad Flat Packages - LXE Package 48-Lead Plastic Exposed Pad LQFP (7mm × 7mm)
click to zoom

LTC3300ILXE-2#WPBF Details

  • Manufacturer Part Number:

    LTC3300ILXE-2#WPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-49

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1832

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-05-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LTC3300ILXE-2#WPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3300 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. Also, avoid using long traces and vias near the device, and keep the feedback network as short as possible.
  • The maximum input voltage that can be applied to the LTC3300 is 15V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure the input voltage stays within the recommended range.
  • The LTC3300 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the LTC3300, start by checking the input and output voltages, and the device's operating frequency. Use an oscilloscope to check for oscillations or noise on the output. Also, check the device's thermal performance and ensure that it's not overheating. Consult the datasheet and application notes for more troubleshooting tips.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3300ILXE-2#WPBF Overview

Use the download button to access the LTC3300ILXE-2#WPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC33, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
