LTC3559EUD-1#PBF - Analog Devices

Description: Battery Management Lin USB Bat Chr w/ 2x Buck Regs

Download LTC3559EUD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

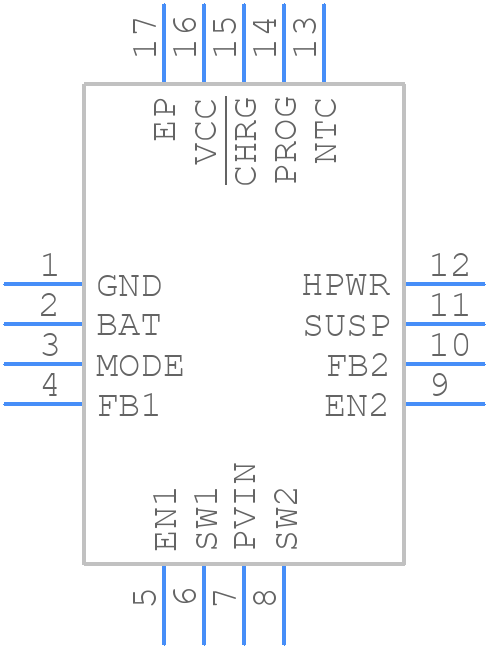

LTC3559EUD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3559EUD-1#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm) (Reference LTC DWG # 05-08-1691)
click to zoom
3D Models
LTC3559EUD-1#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm) (Reference LTC DWG # 05-08-1691)
click to zoom

LTC3559EUD-1#PBF Details

  • Manufacturer Part Number:

    LTC3559EUD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1691

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3559EUD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3559EUD-1#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • When selecting an inductor for the LTC3559EUD-1#PBF, consider the inductor's value, saturation current, and DC resistance. A good starting point is to use an inductor with a value between 1uH and 10uH, a saturation current of at least 1.5A, and a DC resistance of less than 100mΩ. Additionally, consider the inductor's physical size, core material, and temperature rating.
  • The LTC3559EUD-1#PBF can operate in ambient temperatures ranging from -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • To troubleshoot issues with the LTC3559EUD-1#PBF, start by checking the input voltage, output voltage, and current draw. Verify that the input voltage is within the recommended range, and that the output voltage is within the desired range. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check for any noise or oscillations on the output voltage. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The LTC3559EUD-1#PBF is a high-reliability device that meets the requirements of various safety standards, including AEC-Q100 and IEC 61508. However, it's essential to follow proper design and testing procedures to ensure that the device meets the specific requirements of the application. Additionally, consider using redundant or fault-tolerant designs to ensure system reliability and safety.
