LTC4000EGN-1#PBF - Analog Devices

Description: High Voltage High Current Controller for Battery Charging with Maximum Power Point Control

Download LTC4000EGN-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

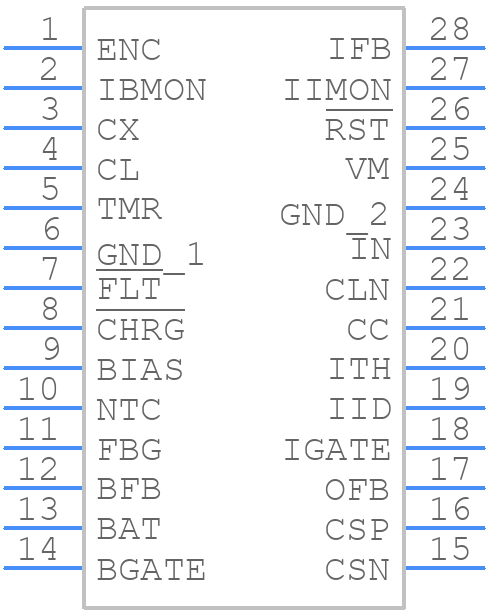

Symbol
LTC4000EGN-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4000EGN-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN (28-Lead SSOP)_1
click to zoom
3D Models
LTC4000EGN-1#PBF - Analog Devices - 3D model - Small Outline Packages - GN (28-Lead SSOP)_1
click to zoom

LTC4000EGN-1#PBF Details

  • Manufacturer Part Number:

    LTC4000EGN-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1641 (GN28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC4000EGN-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4000EGN-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate.
  • The selection of external components for the LTC4000EGN-1#PBF depends on the specific application requirements. For example, the input and output capacitors should be chosen based on the desired output voltage ripple and the input voltage range. The inductor value and type should be selected based on the desired output current and the switching frequency. It's recommended to refer to the datasheet and application notes for guidance on component selection.
  • The maximum ambient temperature range for the LTC4000EGN-1#PBF is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, and it's recommended to refer to the datasheet for more information on temperature-related specifications.
  • Troubleshooting issues with the LTC4000EGN-1#PBF involves identifying the symptoms of the problem, checking the device's pin voltages and currents, and verifying that the external components are properly selected and connected. It's also recommended to refer to the datasheet and application notes for guidance on troubleshooting common issues.
  • Yes, the LTC4000EGN-1#PBF is compatible with lead-free soldering processes. The device is RoHS compliant and can be soldered using lead-free soldering techniques.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4000EGN-1#PBF Overview

Use the download button to access the LTC4000EGN-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC40, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
