LTC4000EUFD-1#PBF - Analog Devices

Description: Battery Charger Automotive 28-Pin QFN EP Tube

Download LTC4000EUFD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

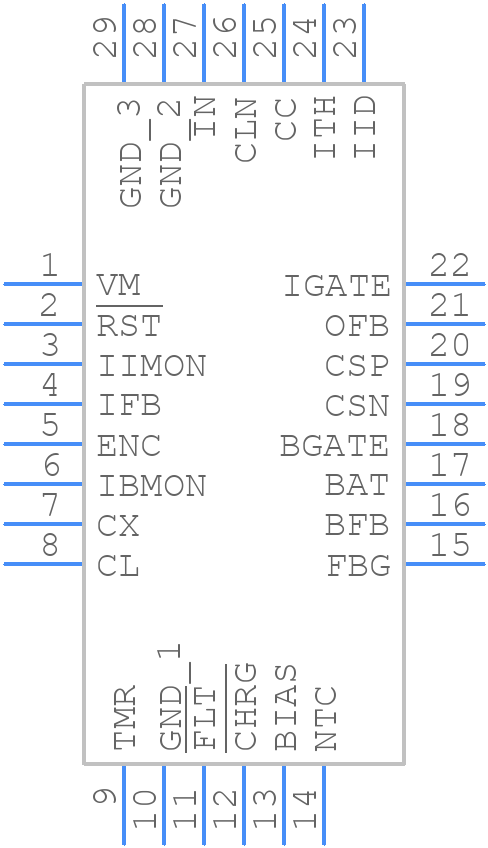

LTC4000EUFD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4000EUFD-1#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm x 5mm)
click to zoom
3D Models
LTC4000EUFD-1#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm x 5mm)
click to zoom

LTC4000EUFD-1#PBF Details

  • Manufacturer Part Number:

    LTC4000EUFD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    SEATED HT-CALCULATED

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LTC4000EUFD-1#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC4000EUFD-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • The selection of input and output capacitors for the LTC4000EUFD-1#PBF depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 25V to 50V.
  • The LTC4000EUFD-1#PBF can operate in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It is recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
  • Yes, the LTC4000EUFD-1#PBF is a high-reliability device that is suitable for use in high-reliability applications. The device is built with high-quality materials and is designed to meet the requirements of high-reliability industries such as aerospace, defense, and medical devices. However, it is recommended to follow proper design and manufacturing practices to ensure the device's reliability in the specific application.
  • Troubleshooting issues with the LTC4000EUFD-1#PBF involves identifying the symptoms of the problem, checking the device's input and output voltages and currents, and verifying the device's configuration and operation. Common issues include incorrect input voltage, incorrect output voltage, and overheating. It is recommended to consult the device's datasheet and application notes for troubleshooting guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4000EUFD-1#PBF Overview

Use the download button to access the LTC4000EUFD-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC40, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
