LTC4015EUHF#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC4015EUHF#PBF - BATTERY CHARGER, 20A, QFN-38

Download LTC4015EUHF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

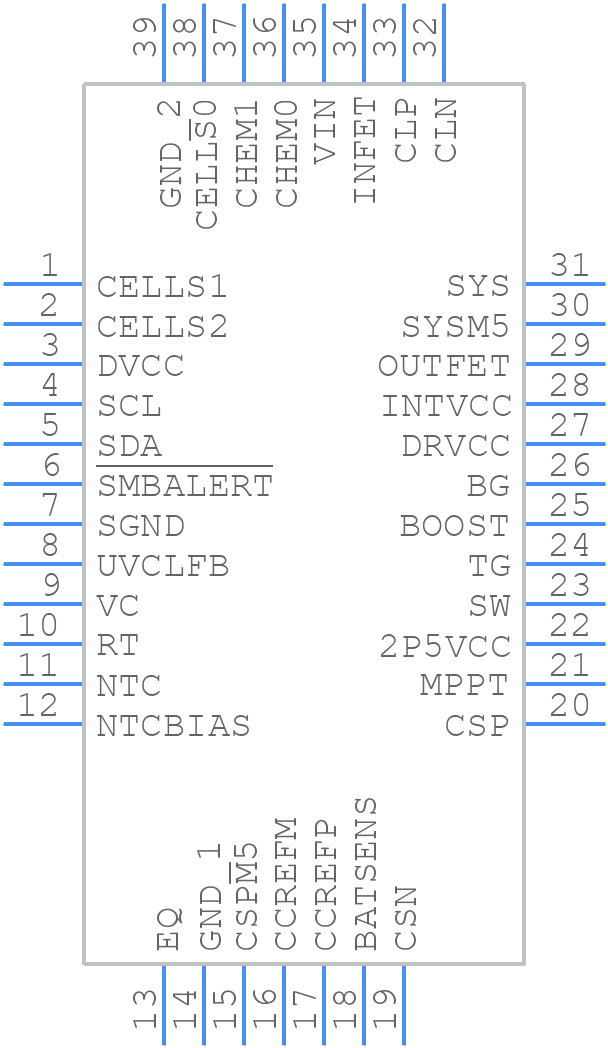

LTC4015EUHF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4015EUHF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UHF (38-Lead QFN)
click to zoom
3D Models
LTC4015EUHF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UHF (38-Lead QFN)
click to zoom

LTC4015EUHF#PBF Details

  • Manufacturer Part Number:

    LTC4015EUHF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1701

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    3.1 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC4015EUHF#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LTC4015EUHF can handle is 32V, but it's recommended to operate within the 4.5V to 32V range for optimal performance.
  • To ensure proper configuration, refer to the datasheet's battery chemistry-specific settings and adjust the device's settings accordingly. You can also consult with Analog Devices' application notes and technical support for guidance.
  • The typical charging current for the LTC4015EUHF is 2A, but it can be adjusted up to 4A using external resistors. Refer to the datasheet's charging current adjustment section for more information.
  • The LTC4015EUHF has a built-in overcharge protection feature. To implement it, connect the OV pin to the battery's positive terminal and set the OV threshold using an external resistor divider network. Refer to the datasheet for more information.
  • Yes, the LTC4015EUHF can be used for charging multiple batteries in parallel. However, ensure that the total charging current does not exceed the device's maximum rating, and that each battery has its own overcharge protection circuitry.
