LTC4067EDE#PBF - Analog Devices

Description: USB Power Manager Li-Ion/Polymer Charger Linear Technology LTC4067EDE#PBF, Battery Charger, 1000mA, 12-Pin DFN

Download LTC4067EDE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

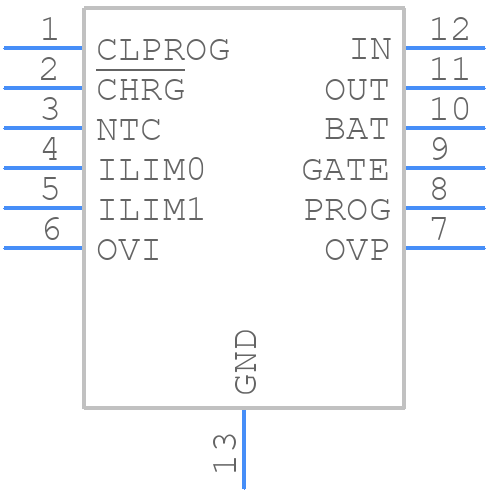

LTC4067EDE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4067EDE#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN (4mm × 3mm)
click to zoom
3D Models
LTC4067EDE#PBF - Analog Devices - 3D model - Small Outline No-lead - DFN (4mm × 3mm)
click to zoom

LTC4067EDE#PBF Details

  • Manufacturer Part Number:

    LTC4067EDE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4067EDE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC4067EDE is 18V. Exceeding this voltage may damage the device.
  • To ensure the LTC4067EDE is operating within its thermal limits, make sure to provide adequate heat sinking and keep the junction temperature (TJ) below 125°C. You can calculate the TJ using the thermal resistance (θJA) and power dissipation (PD) values provided in the datasheet.
  • For optimal performance, place the LTC4067EDE close to the power source and use a solid ground plane to minimize noise and EMI. Keep the input and output capacitors close to the device and use short, wide traces to minimize inductance and resistance.
  • Choose input and output capacitors with low ESR and high ripple current ratings. The recommended capacitance values are 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor. Make sure to follow the capacitor selection guidelines provided in the datasheet.
  • The minimum ESR required for the output capacitor is 0.05Ω. Using a capacitor with a lower ESR may cause instability or oscillations in the device.
