LTC4095EDC#TRMPBF - Analog Devices

Description: Battery Management Standalone 950mA USB Li-Ion/Polymer Battery Charger in DFN

Download LTC4095EDC#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

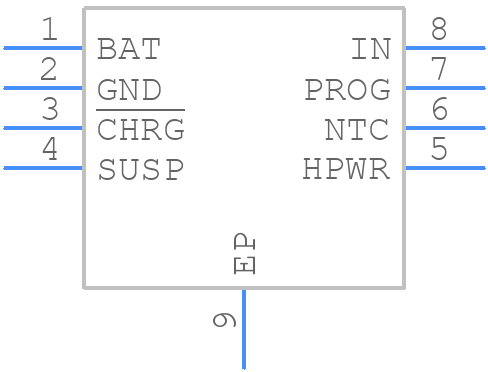

LTC4095EDC#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4095EDC#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC(DFN)
click to zoom
3D Models
LTC4095EDC#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DC(DFN)
click to zoom

LTC4095EDC#TRMPBF Details

  • Manufacturer Part Number:

    LTC4095EDC#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 2 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1719

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LTC4095EDC#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4095EDC involves keeping the high-current paths short and wide, using multiple vias to connect the GND pins to the thermal pad, and placing the input capacitors close to the VIN pin.
  • To optimize the performance of the LTC4095EDC in high-temperature environments, ensure good thermal design, use a heat sink if necessary, and consider derating the output current according to the temperature derating curve in the datasheet.
  • The maximum input voltage that the LTC4095EDC can handle is 32V, but it's recommended to keep the input voltage below 28V to ensure reliable operation and to prevent damage to the device.
  • Yes, the LTC4095EDC is suitable for battery-powered applications due to its low quiescent current and high efficiency. However, ensure that the input voltage is within the recommended range and that the device is properly bypassed to prevent voltage spikes.
  • To troubleshoot issues with the LTC4095EDC, check the input voltage, output voltage, and current, and ensure that the device is properly connected and bypassed. Also, verify that the thermal design is adequate and that the device is not overheating.
