LTC4120IUD-4.2#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC4120IUD-4.2#PBF - Battery Charger for 1 Cell of Li-Ion, Li-Pol battery, 40V input, 4.2V / 421mA charge, QFN-16

Download LTC4120IUD-4.2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

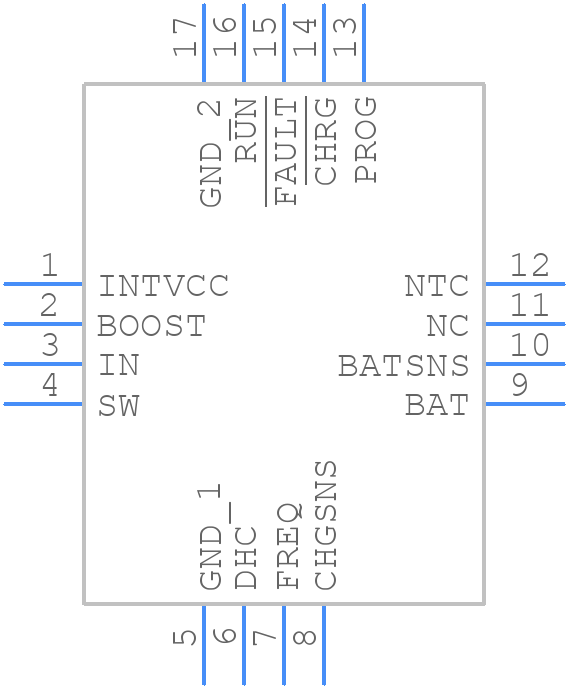

LTC4120IUD-4.2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4120IUD-4.2#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm)
click to zoom
3D Models
LTC4120IUD-4.2#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm)
click to zoom

LTC4120IUD-4.2#PBF Details

  • Manufacturer Part Number:

    LTC4120IUD-4.2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1691

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    12.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4120IUD-4.2#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC4120IUD-4.2#PBF can be found in the application note AN140, which provides guidelines for layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The sense resistor value depends on the maximum current rating of the battery and the desired accuracy of the current measurement. A general guideline is to choose a sense resistor value that results in a voltage drop of 10-50mV at the maximum current rating. The datasheet provides a formula to calculate the sense resistor value based on the maximum current rating and the desired accuracy.
  • The maximum operating temperature range for the LTC4120IUD-4.2#PBF is -40°C to 125°C, but the device can be operated up to 150°C with reduced performance and reliability. It's essential to ensure proper thermal management and heat sinking to maintain the device within the recommended operating temperature range.
  • The LTC4120IUD-4.2#PBF is optimized for lithium-ion batteries, but it can be used with other battery chemistries such as nickel-cadmium (NiCd) or nickel-metal hydride (NiMH) with some modifications to the charging algorithm and voltage settings. However, it's essential to consult with Analog Devices Inc. or a qualified engineer to ensure the device is properly configured and optimized for the specific battery chemistry.
  • The LTC4120IUD-4.2#PBF has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor values for the OVP pin. The datasheet provides a formula to calculate the OVP threshold voltage based on the resistor values.
