LTC4124EV#TRPBF - Analog Devices

Description: 100mA Wireless Li-Ion Charger with Low Battery Disconnect Charger IC Lithium Ion 12-LQFN (2x2)

Download LTC4124EV#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

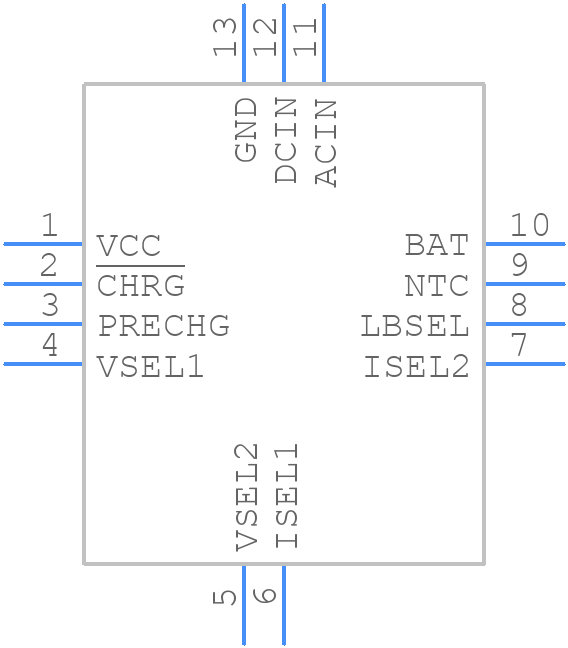

LTC4124EV#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4124EV#TRPBF - Analog Devices PCB footprint - Other - Other - 12-Lead (2mm × 2mm × 0.74mm)
click to zoom
3D Models
LTC4124EV#TRPBF - Analog Devices - 3D model - Other - 12-Lead (2mm × 2mm × 0.74mm)
click to zoom

LTC4124EV#TRPBF Details

  • Manufacturer Part Number:

    LTC4124EV#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1530

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-XQCC-N12

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.83 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

LTC4124EV#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC4124EV is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To ensure the LTC4124EV operates within its thermal limits, make sure to provide adequate heat sinking, keep the ambient temperature below 85°C, and avoid high current and voltage stresses.
  • For optimal PCB layout, keep the input and output capacitors close to the IC, use a solid ground plane, and minimize trace lengths and loops. Also, consider using a shielded inductor and placing the IC away from noise sources.
  • Yes, the LTC4124EV is qualified for automotive and high-reliability applications, but ensure you follow the recommended operating conditions, and consider additional testing and validation for your specific use case.
  • To troubleshoot issues with the LTC4124EV, check the input voltage, output voltage, and current levels, and verify that the device is operating within its recommended specifications. Also, review the PCB layout and thermal design to ensure they meet the recommended guidelines.
