LTC4125EUFD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC4125EUFD#PBF - WIRELESS PWR TX, 5.5V, QFN-20

Download LTC4125EUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

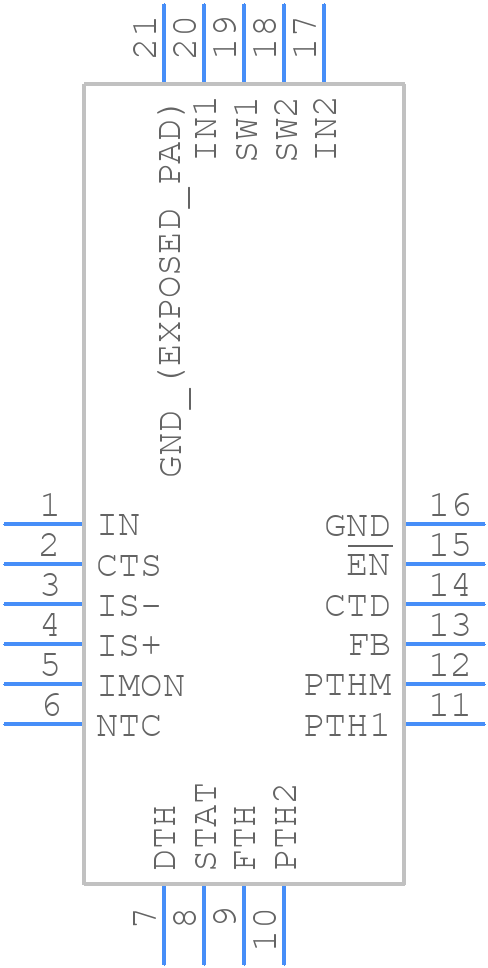

Symbol
LTC4125EUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4125EUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD - 20-Lead Plastic QFN (4mm x 5mm)
click to zoom
3D Models
LTC4125EUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD - 20-Lead Plastic QFN (4mm x 5mm)
click to zoom

LTC4125EUFD#PBF Details

  • Manufacturer Part Number:

    LTC4125EUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1711

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4125EUFD#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the high-current paths is recommended. Keep the high-current paths short and wide, and use thermal vias to connect the IC to the ground plane.
  • Monitor the IC's junction temperature, input voltage, and output current to ensure they are within the specified limits. Use thermal management techniques such as heat sinks or thermal interfaces to keep the junction temperature below 125°C.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended. The capacitor should be placed close to the VIN pin and have a voltage rating of at least 2x the maximum input voltage.
  • Choose an inductor with a low DCR, high saturation current, and a core material that can handle the switching frequency. The inductor value should be selected based on the output voltage, output current, and switching frequency.
  • A low-ESR ceramic capacitor with a value of 10uF to 47uF is recommended. The capacitor should be placed close to the VOUT pin and have a voltage rating of at least 1.5x the output voltage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4125EUFD#PBF Overview

Use the download button to access the LTC4125EUFD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC41, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
