LTC4125EUFD#TRPBF - Analog Devices

Description: Wireless Charging ICs 5W AutoResonant Wireless Pwr Transmitter

Download LTC4125EUFD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

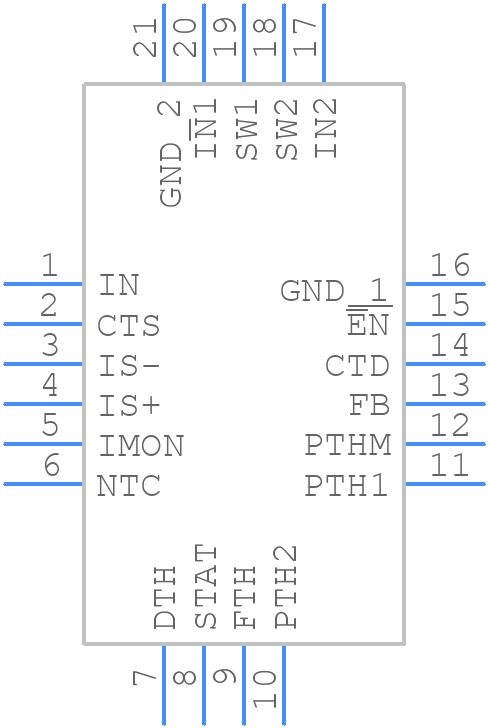

LTC4125EUFD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4125EUFD#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD - 20-Lead Plastic QFN (4mm x 5mm)
click to zoom
3D Models
LTC4125EUFD#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD - 20-Lead Plastic QFN (4mm x 5mm)
click to zoom

LTC4125EUFD#TRPBF Details

  • Manufacturer Part Number:

    LTC4125EUFD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1711

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4125EUFD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4125EUFD#TRPBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane is recommended.
  • To ensure reliable communication, use a dedicated I2C bus with pull-up resistors, keep the bus length short, and use a common ground between the LTC4125EUFD#TRPBF and the microcontroller. Also, ensure that the microcontroller's I2C clock frequency is within the recommended range of 100 kHz to 400 kHz.
  • The LTC4125EUFD#TRPBF is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal management guidelines for more information.
  • The LTC4125EUFD#TRPBF is designed to operate with an input voltage range of 4.5V to 55V, but it can be used with a different input voltage range with some limitations. Consult the datasheet and application notes for more information on input voltage range and power supply considerations.
  • To troubleshoot issues with the LTC4125EUFD#TRPBF, start by checking the input voltage, output voltage, and current sense resistor values. Verify that the device is properly configured and that the I2C communication is working correctly. Consult the datasheet and application notes for troubleshooting guidelines and use a logic analyzer or oscilloscope to debug the issue.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4125EUFD#TRPBF Overview

Use the download button to access the LTC4125EUFD#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC41, or try a keyword search, such as Power Management Circuits
