LTC4151IS-2#PBF - Analog Devices

Description: Power Supply Controller Power Supply Monitor,–0.3V to 90V, –40°C to 85°C, S PACKAGE 16-Lead Plastic SO

Download LTC4151IS-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

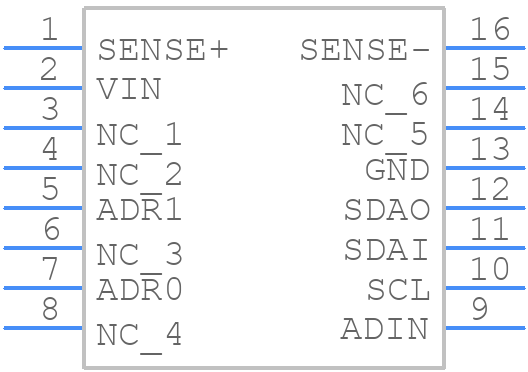

LTC4151IS-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4151IS-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 16-Lead Plastic Small Outline
click to zoom
3D Models
LTC4151IS-2#PBF - Analog Devices - 3D model - Small Outline Packages - S Package 16-Lead Plastic Small Outline
click to zoom

LTC4151IS-2#PBF Details

  • Manufacturer Part Number:

    LTC4151IS-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.906 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC4151IS-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4151IS-2#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure accurate current sensing, use a low-value sense resistor (Rs) and place it as close to the IC as possible. Also, ensure that the sense resistor is in the direct path of the current being measured, and that the voltage across the sense resistor is within the recommended range (0-50mV).
  • The maximum ambient temperature range for the LTC4151IS-2#PBF is -40°C to 125°C. However, the device can operate at a junction temperature (TJ) of up to 150°C.
  • Yes, the LTC4151IS-2#PBF is designed to operate in high-vibration environments. However, it's essential to ensure that the PCB is properly secured and that the IC is properly soldered to the board to prevent mechanical stress.
  • To troubleshoot issues with the LTC4151IS-2#PBF, start by checking the input voltage, output voltage, and sense resistor voltage. Use an oscilloscope to check for any unusual waveforms or noise. Also, ensure that the PCB layout is correct, and that the IC is properly soldered to the board.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4151IS-2#PBF Overview

Use the download button to access the LTC4151IS-2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC41, or try a keyword search, such as Power Management Circuits
