LTC4300A-3CMS8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC4300A-3CMS8#PBF - IC, HOTSWAP 2WIRE BUS BUFFR, 8MSOP

Download LTC4300A-3CMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

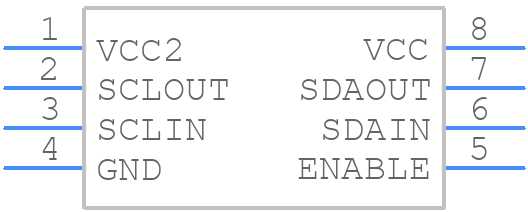

Symbol
LTC4300A-3CMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4300A-3CMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic MSOP-ren4
click to zoom
3D Models
LTC4300A-3CMS8#PBF - Analog Devices - 3D model - Small Outline Packages - 8-Lead Plastic MSOP-ren4
click to zoom

LTC4300A-3CMS8#PBF Details

  • Manufacturer Part Number:

    LTC4300A-3CMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4300A-3CMS8#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use short, wide traces for power and ground connections.
  • Ensure that the power supply is stable and well-regulated. Use a soft-start circuit to limit inrush current during hot swap. Also, use a TVS diode to protect against voltage transients.
  • The maximum cable length supported by the LTC4300A is dependent on the specific application and the type of cable used. As a general guideline, cable lengths up to 10 meters are typically supported, but longer lengths may be possible with proper termination and signal conditioning.
  • The LTC4300A is designed to operate from a 3.3V or 5V supply, but it can be used with other voltage supplies with some modifications. However, this may require additional circuitry and may affect the device's performance and reliability.
  • Use a logic analyzer or oscilloscope to monitor the device's signals and identify any anomalies. Check the power supply voltage, clock frequency, and signal integrity. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4300A-3CMS8#PBF Overview

Use the download button to access the LTC4300A-3CMS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
