LTC4331HUFD#TRPBF - Analog Devices

Description: Interface - Specialised I2C Slave Extend over Differential LinK

Download LTC4331HUFD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

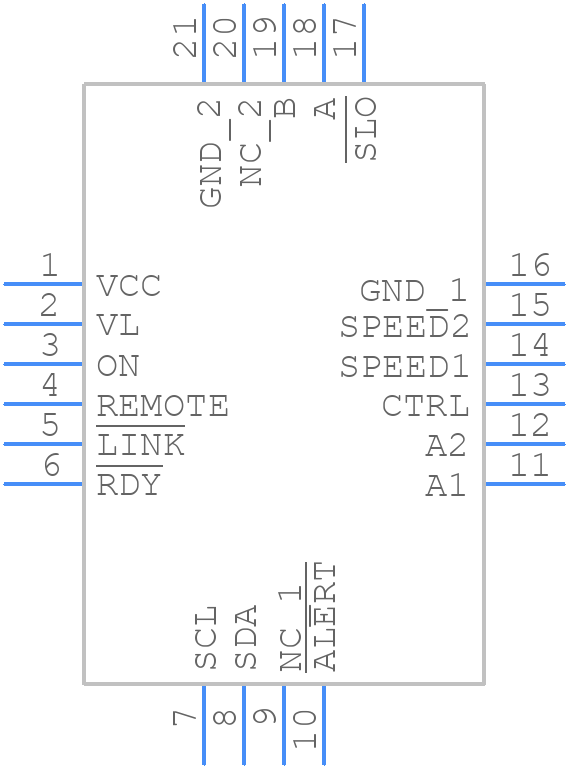

LTC4331HUFD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4331HUFD#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD - 20-Lead Plastic QFN (4mm x 5mm)
click to zoom
3D Models
LTC4331HUFD#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD - 20-Lead Plastic QFN (4mm x 5mm)
click to zoom

LTC4331HUFD#TRPBF Details

  • Manufacturer Part Number:

    LTC4331HUFD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1711

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.02 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.14 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4331HUFD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4331HUFD#TRPBF involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure reliable hot swap operation, make sure to follow the recommended hot swap circuit topology, use a suitable external MOSFET, and add a current-sensing resistor to detect overcurrent conditions. Also, ensure that the input voltage is within the recommended range and the output is properly decoupled.
  • The maximum allowed voltage on the FAULT pin is 5.5V. Exceeding this voltage may damage the device. It's recommended to use a voltage divider or a clamp circuit to limit the voltage on the FAULT pin to within the recommended range.
  • The LTC4331HUFD#TRPBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's current handling capability and to ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the LTC4331HUFD#TRPBF, start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the external components are correctly selected. Use an oscilloscope to check for voltage transients and ringing. Consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4331HUFD#TRPBF Overview

Use the download button to access the LTC4331HUFD#TRPBF schematic symbol, PCB footprint, and 3D model.
