LTC4361CDC-1#TRPBF footprint, schematic symbol and 3D model by Analog Devices

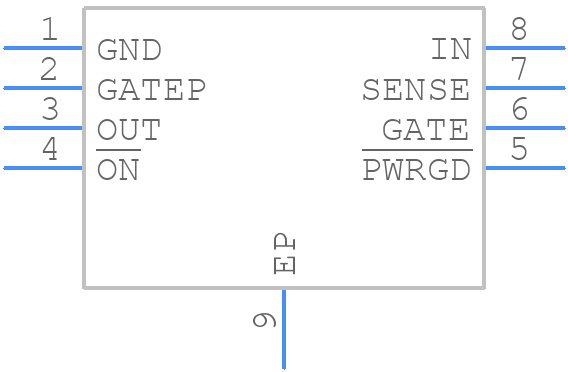

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC4361CDC-1#TRPBF
Part Number LTC4361CDC-1#TRPBF
Manufacturer Analog Devices
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - DC8 Package 8-Lead Plastic DFN (2mm × 2mm) (Reference LTC DWG # 05-08-1719 Rev A)
Released Date Jul 31, 2026
Last Modified Date Jul 31, 2026 8:34 AM UTC
Pinout / Pin List Click Here (Member Only)

LTC4361CDC-1#TRPBF Details

Manufacturer Part Number:
LTC4361CDC-1#TRPBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DFN-8
Pin Count:
8
Manufacturer Package Code:
05-08-1719
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Adjustable Threshold:
NO
Analog IC - Other Type:
OVERVOLTAGE DETECTOR
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e3
Length:
2 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
80 V
Supply Voltage-Min (Vsup):
2.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.45 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
2 mm

LTC4361CDC-1#TRPBF Frequently Asked Questions (FAQs)

A good PCB layout for the LTC4361CDC-1#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
The input capacitor should have a low ESR and be rated for the maximum input voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor should have a low ESR and be rated for the maximum output voltage. A ceramic capacitor with an X7R or X5R dielectric or a film capacitor is recommended. The capacitor values should be chosen based on the desired output voltage ripple and transient response.
The maximum ambient temperature range for the LTC4361CDC-1#TRPBF is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
To troubleshoot issues with the LTC4361CDC-1#TRPBF, start by checking the input voltage, output voltage, and current sense resistor values. Verify that the device is properly configured and that the input and output capacitors are correctly selected. Use an oscilloscope to check for voltage and current waveforms, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the LTC4361CDC-1#TRPBF is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
