LTC4361ITS8-2#TRMPBF - Analog Devices

Description: Overvoltage/Overcurrent Protection Controller, SOT-23-8

Download LTC4361ITS8-2#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

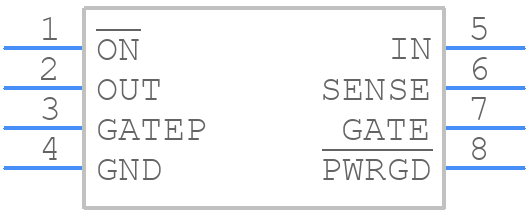

Symbol
LTC4361ITS8-2#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4361ITS8-2#TRMPBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TS8(TSOT-23)
click to zoom
3D Models
LTC4361ITS8-2#TRMPBF - Analog Devices - 3D model - SOT23 (8-Pin) - TS8(TSOT-23)
click to zoom

LTC4361ITS8-2#TRMPBF Details

  • Manufacturer Part Number:

    LTC4361ITS8-2#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1637

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    OVERVOLTAGE DETECTOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LTC4361ITS8-2#TRMPBF Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VIN pin is 80V, but it's recommended to keep it below 60V for reliable operation.
  • The sense resistor value depends on the maximum current you expect in your application. A good starting point is to choose a value that sets the sense voltage to around 50mV at the maximum current. You can use the formula Rsense = 0.05V / Imax to calculate the value.
  • The EN pin is an active-high enable input that allows you to turn the device on and off. You can connect it to a logic signal or a switch to control the device's operation. When EN is high, the device is enabled, and when it's low, the device is disabled.
  • The overcurrent threshold is set by the voltage on the OCL pin. You can connect a resistor divider from VIN to GND to set the threshold voltage. The formula is OCL voltage = 0.5V x (R1 / (R1 + R2)), where R1 and R2 are the resistors in the divider.
  • The FAULT pin is an open-drain output that indicates when the device has detected an overcurrent or overvoltage condition. You can connect it to a microcontroller or a logic circuit to take action when a fault occurs.
