LTC4362CDCB-2#TRMPBF - Analog Devices

Description: Handheld/Mobile Devices PMIC 8-DFN (2x3)

Download LTC4362CDCB-2#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

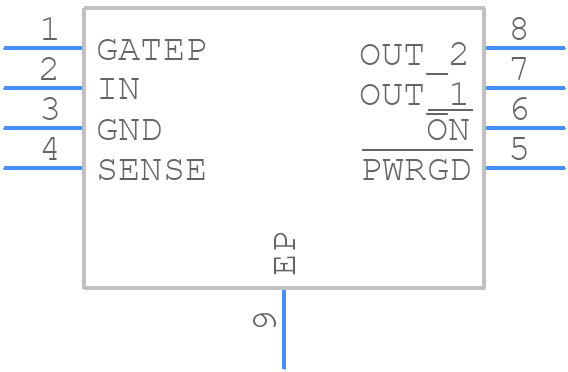

Symbol
LTC4362CDCB-2#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4362CDCB-2#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC Package 8-Lead Plastic DFN (2mm × 3mm) (Reference LTC DWG # 05-08-1718 Rev A)
click to zoom
3D Models
LTC4362CDCB-2#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DC Package 8-Lead Plastic DFN (2mm × 3mm) (Reference LTC DWG # 05-08-1718 Rev A)
click to zoom

LTC4362CDCB-2#TRMPBF Details

  • Manufacturer Part Number:

    LTC4362CDCB-2#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1718

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC4362CDCB-2#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4362 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor. The ESR of the capacitors should be less than 50mΩ.
  • The LTC4362 can operate in an ambient temperature range of -40°C to 125°C. However, the maximum junction temperature should not exceed 150°C.
  • The LTC4362 has a power-on reset circuit that ensures the IC is properly powered up. To power down the IC, the EN pin should be pulled low. It is recommended to add a 10kΩ pull-up resistor from the EN pin to VIN to ensure the IC is properly powered down.
  • The recommended input voltage range for the LTC4362 is 2.7V to 5.5V. However, the IC can operate with input voltages as low as 2.5V, but with reduced performance.
