LTC4366CTS8-2#TRMPBF - Analog Devices

Description: High Voltage Surge Stopper

Download LTC4366CTS8-2#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

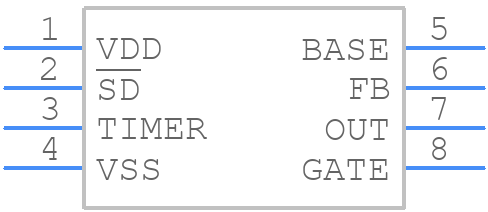

Symbol
LTC4366CTS8-2#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4366CTS8-2#TRMPBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TSOT-23 5, 6, 8 lead_2023
click to zoom
3D Models
LTC4366CTS8-2#TRMPBF - Analog Devices - 3D model - SOT23 (8-Pin) - TSOT-23 5, 6, 8 lead_2023
click to zoom

LTC4366CTS8-2#TRMPBF Details

  • Manufacturer Part Number:

    LTC4366CTS8-2#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1637

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    12.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LTC4366CTS8-2#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4366 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor. The ESR of the capacitors should be less than 100mΩ.
  • The LTC4366 is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the thermal design of the system.
  • The LTC4366 has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage divider that sets the OVP threshold. The OVP threshold should be set to a voltage slightly higher than the maximum input voltage.
  • Yes, the LTC4366 is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured with a controlled process flow to ensure high reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4366CTS8-2#TRMPBF Overview

Use the download button to access the LTC4366CTS8-2#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits
