A good PCB layout for the LTC4366 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer board with a dedicated power plane and a solid ground plane is recommended.
The input capacitor should have a low ESR and be rated for the maximum input voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor should have a low ESR and be rated for the maximum output voltage. A ceramic capacitor with an X7R or X5R dielectric or a film capacitor is recommended. The capacitor values should be chosen based on the desired output ripple and transient response.
The LTC4366 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. The device's junction temperature should be kept below 150°C to ensure reliable operation.
The LTC4366 has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider that sets the OVP threshold. The OVP pin should be connected to a voltage divider that sets the OVP threshold to the desired value, typically 10% to 20% above the maximum input voltage.
Yes, the LTC4366 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability applications such as industrial, medical, and aerospace.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTC4366CTS8-2#TRPBF Overview

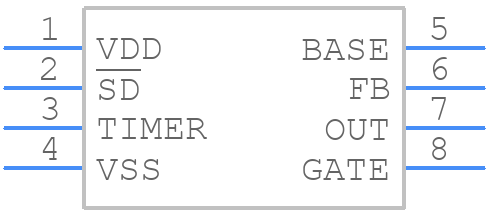

Use the download button to access the LTC4366CTS8-2#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43,
or try a keyword search, such as Power Management Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
