LTC4366HTS8-1#TRPBF - Analog Devices

Description: Rugged Floating Topology n Wide Operating Voltage Range: 9V to >500V n Adjustable Output Clamp Voltage n Controls N-Channel MOSFET n Adjustable Protection Timer n Internal 9-Second Cool-Down Timer n Shutdown IQ < 14µA n 8-Lead TSOT and 3mm × 2mm DFN Packages

Download LTC4366HTS8-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

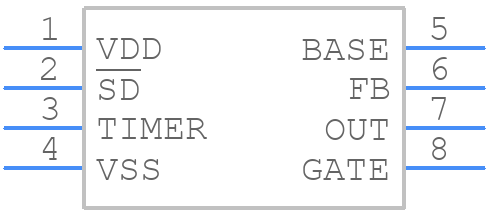

LTC4366HTS8-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4366HTS8-1#TRPBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23
click to zoom
3D Models
LTC4366HTS8-1#TRPBF - Analog Devices - 3D model - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23
click to zoom

LTC4366HTS8-1#TRPBF Details

  • Manufacturer Part Number:

    LTC4366HTS8-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1637

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    12.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LTC4366HTS8-1#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4366 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer board with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF, while the output capacitor should be a low-ESR ceramic or film capacitor with a value of at least 10uF. The capacitor selection should be based on the specific application requirements, such as ripple current, voltage rating, and ESR.
  • The LTC4366 is rated for operation from -40°C to 125°C, but the maximum operating temperature range may be limited by the specific application and the components used in the design.
  • The LTC4366 has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider that sets the OVP threshold. The OVP pin should be connected to a voltage divider that sets the OVP threshold to the desired level, and the OVP response time can be adjusted using an external capacitor.
  • Yes, the LTC4366 is qualified for use in high-reliability and automotive applications, and it meets the requirements of various industry standards, such as AEC-Q100 and IEC 60747-5. However, the specific requirements of the application should be reviewed to ensure that the device meets all the necessary requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4366HTS8-1#TRPBF Overview

Use the download button to access the LTC4366HTS8-1#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
