LTC4367CMS8-1#PBF - Analog Devices

Description: Surge Suppressors 100V OV, UV and Reverse Supply Protection Controller with 0.5ms On Delay

Download LTC4367CMS8-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

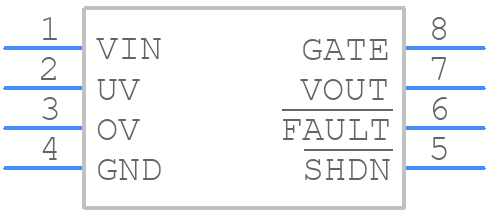

Symbol
LTC4367CMS8-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4367CMS8-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom
3D Models
LTC4367CMS8-1#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom

LTC4367CMS8-1#PBF Details

  • Manufacturer Part Number:

    LTC4367CMS8-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.09 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4367CMS8-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4367 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the maximum input voltage. The output capacitor should have a low ESR and be rated for the maximum output voltage. A minimum capacitance of 10uF is recommended for both input and output capacitors. X5R or X7R ceramic capacitors are good options.
  • The LTC4367 can operate in ambient temperatures up to 125°C, but the maximum junction temperature should not exceed 150°C. Proper thermal design and heat sinking may be required to ensure reliable operation.
  • Yes, the LTC4367 is available in a variety of grades, including the 'MP' grade which is suitable for high-reliability applications, and the 'Q' grade which is suitable for automotive applications. These grades have additional testing and screening to ensure higher reliability and performance.
  • Troubleshooting the LTC4367 involves checking the input and output voltages, current sense resistors, and fault pins. A detailed troubleshooting guide is available in the datasheet and application notes. Additionally, Analog Devices provides a variety of tools and resources, such as simulation models and evaluation boards, to help with design and debugging.
