Part Image

LTC4367HMS8-1#PBF - Analog Devices

Description: Surge Suppressors 100V OV, UV and Reverse Supply Protection Controller with 0.5ms On Delay

Download ECAD Model

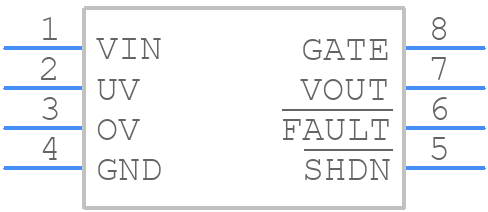

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

LTC4367HMS8-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom

3D Models

LTC4367HMS8-1#PBF - Analog Devices  - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Check Stock & Prices
  • Part Number LTC4367HMS8-1#PBF
  • Manufacturer Analog Devices
  • Pin Count 8
  • Part Category Integrated Circuit
  • Package Category Small Outline Packages
  • Footprint Name Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
  • Released Date Jun 30, 2020
  • Pinout / Pin List Click Here (Member Only)

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

LTC4367HMS8-1#PBF Overview

Use the download button to access the LTC4367HMS8-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits
