LTC4367IDD-1#TRPBF - Analog Devices

Description: n Wide Operating Voltage Range: 2.5V to 60V n Overvoltage Protection to 100V n Reverse Supply Protection to –40V n LTC4367: Blocks 50Hz and 60Hz AC Power n LTC4367: 32ms Recovery from Fault n LTC4367-1: Fast 500µs Recovery from Fault n No Input Capacitor or TVS Required for Most Applications n Adjustable Undervoltage and Overvoltage Thresholds n Controls Back-to-Back N-Channel MOSFETs n Low Operating Current: 70µA n Low Shutdown Current: 5µA n 8-Pin MSOP and 3mm × 3mm DFN Packages n AEC-Q100 Qu

Download LTC4367IDD-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

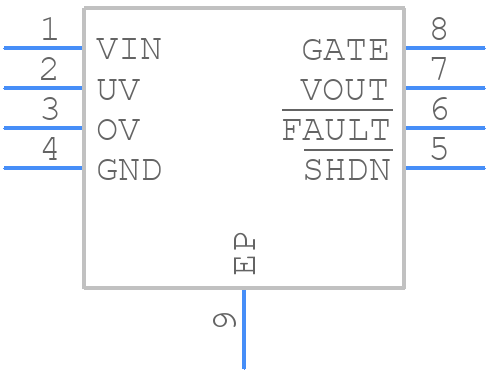

LTC4367IDD-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4367IDD-1#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)
click to zoom
3D Models
LTC4367IDD-1#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)
click to zoom

LTC4367IDD-1#TRPBF Details

  • Manufacturer Part Number:

    LTC4367IDD-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.09 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4367IDD-1#TRPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC4367IDD-1#TRPBF is -40°C to 125°C.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, and make sure to meet the minimum input voltage and current requirements.
  • For optimal performance and thermal management, follow the recommended PCB layout guidelines in the datasheet, including keeping the device away from heat sources, using thermal vias, and providing adequate copper area for heat dissipation.
  • To troubleshoot issues, start by reviewing the datasheet and application notes, then check the device's configuration, power supply, and input/output connections. Use oscilloscopes and logic analyzers to debug the issue, and consult with Analog Devices' support resources if needed.
  • Yes, the LTC4367IDD-1#TRPBF is designed for high-reliability and safety-critical applications, but it's essential to follow the recommended design and testing guidelines, and to consult with Analog Devices' support resources to ensure compliance with relevant industry standards and regulations.
