LTC4367IMS8-1#TRPBF - Analog Devices

Description: n Wide Operating Voltage Range: 2.5V to 60V n Overvoltage Protection to 100V n Reverse Supply Protection to –40V n LTC4367: Blocks 50Hz and 60Hz AC Power n LTC4367: 32ms Recovery from Fault n LTC4367-1: Fast 500µs Recovery from Fault n No Input Capacitor or TVS Required for Most Applications n Adjustable Undervoltage and Overvoltage Thresholds n Controls Back-to-Back N-Channel MOSFETs n Low Operating Current: 70µA n Low Shutdown Current: 5µA n 8-Pin MSOP and 3mm × 3mm DFN Packages n AEC-Q100 Qu

Download LTC4367IMS8-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

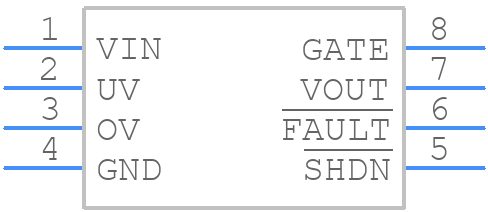

Symbol
LTC4367IMS8-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4367IMS8-1#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660 Rev G)
click to zoom
3D Models
LTC4367IMS8-1#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660 Rev G)
click to zoom

LTC4367IMS8-1#TRPBF Details

  • Manufacturer Part Number:

    LTC4367IMS8-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.09 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4367IMS8-1#TRPBF Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VIN pin is 80V, but it's recommended to keep it below 60V for reliable operation.
  • The sense resistor value depends on the maximum current you expect in your application. A good starting point is to choose a value that sets the sense voltage to around 50mV at the maximum current. You can use the formula Rsense = 0.05V / Imax to calculate the value.
  • The EN pin is an active-high enable input that allows you to turn the device on and off. You can connect it to a logic signal or a switch to control the device's operation. When EN is high, the device is enabled, and when it's low, the device is disabled.
  • The OVP threshold is set by the voltage on the OV pin. You can connect a resistor divider from VIN to OV to set the threshold. The formula is OV = VIN x (R1 / (R1 + R2)), where R1 and R2 are the resistors in the divider.
  • The FAULT pin is an open-drain output that indicates when a fault condition occurs, such as overcurrent or overvoltage. You can connect it to a microcontroller or a logic circuit to take action when a fault occurs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4367IMS8-1#TRPBF Overview

Use the download button to access the LTC4367IMS8-1#TRPBF schematic symbol, PCB footprint, and 3D model.
