LTC4368CDD-1#TRPBF - Analog Devices

Description: n Wide Operating Voltage Range: 2.5V to 60V n Overvoltage Protection to 100V n Reverse Supply Protection to –40V n Bidirectional Electronic Circuit Breaker: n +50mV Forward Sense Threshold n –50mV Reverse (LTC4368-1) n –3mV Reverse (LTC4368-2) n Adjustable ±1.5% Undervoltage and Overvoltage Thresholds n Low Operating Current: 80µA n Low Shutdown Current: 5µA n Controls Back-to-Back N-Channel MOSFETs n Blocks 50Hz and 60Hz AC Power n Hot Swappable Supply Input n Pin-Selectable Overcurrent Auto-

Download LTC4368CDD-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

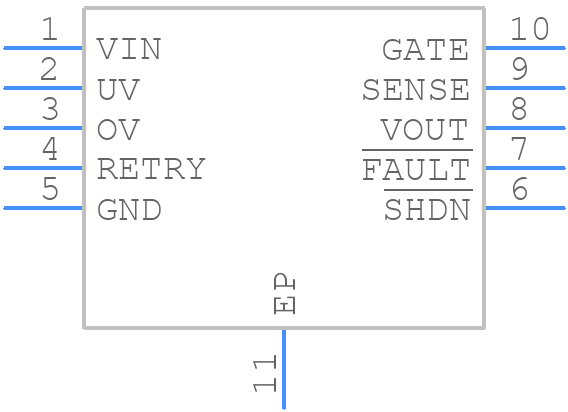

LTC4368CDD-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4368CDD-1#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1699 Rev C) H 0.8mm
click to zoom
3D Models
LTC4368CDD-1#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1699 Rev C) H 0.8mm
click to zoom

LTC4368CDD-1#TRPBF Details

  • Manufacturer Part Number:

    LTC4368CDD-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4368CDD-1#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4368CDD-1#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the maximum input voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor should have a low ESR and be rated for the maximum output voltage. A ceramic capacitor with an X7R or X5R dielectric or a film capacitor is recommended. The capacitor values should be chosen based on the desired output voltage ripple and transient response.
  • The maximum ambient temperature range for the LTC4368CDD-1#TRPBF is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
  • To troubleshoot issues with the LTC4368CDD-1#TRPBF, start by checking the input voltage, output voltage, and current sense resistor values. Verify that the device is properly configured and that the input and output capacitors are properly selected. Use an oscilloscope to check for voltage transients, ringing, or oscillations. Check the device's fault flags and error codes to identify the specific issue. Consult the datasheet and application notes for troubleshooting guidelines and fault detection methods.
  • Yes, the LTC4368CDD-1#TRPBF is suitable for high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is manufactured with high-reliability processes. However, it's essential to follow proper design and manufacturing guidelines to ensure the device meets the specific requirements of the application.
