LTC4368CMS-1#TRPBF - Analog Devices

Description: 100V UV/OV and Reverse Protection Controller with Bidirectional Circuit Breaker, 30uA, 0°C to 70°C

Download LTC4368CMS-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

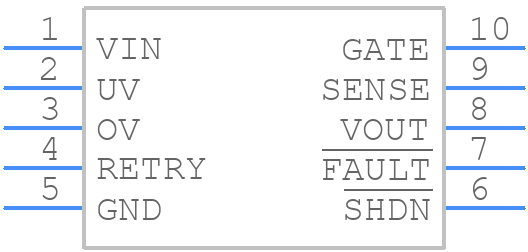

LTC4368CMS-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4368CMS-1#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic MSOP
click to zoom
3D Models
LTC4368CMS-1#TRPBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead Plastic MSOP
click to zoom

LTC4368CMS-1#TRPBF Details

  • Manufacturer Part Number:

    LTC4368CMS-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4368CMS-1#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4368CMS-1#TRPBF involves keeping the input and output capacitors close to the device, and ensuring that the high-frequency switching currents are confined to a small area. A 4-layer PCB with a solid ground plane is recommended. The datasheet provides a recommended PCB layout, but it's essential to consult with experienced PCB designers and perform thermal and signal integrity simulations to optimize the layout.
  • The selection of input and output capacitors for the LTC4368CMS-1#TRPBF depends on the specific application requirements, such as input voltage, output voltage, and output current. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides guidelines for capacitor selection, but it's essential to consult with experienced designers and perform simulations to ensure that the capacitors meet the requirements.
  • The maximum operating temperature for the LTC4368CMS-1#TRPBF is 125°C. However, the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure that the device operates within the recommended temperature range to ensure reliable operation and to prevent damage to the device.
  • Troubleshooting issues with the LTC4368CMS-1#TRPBF involves identifying the symptoms, such as output voltage errors or oscillations, and then using a systematic approach to identify the root cause. This may involve checking the input voltage, output voltage, and current, as well as oscilloscope measurements to identify any anomalies. The datasheet provides troubleshooting guidelines, but it's essential to consult with experienced designers and use specialized tools, such as oscilloscopes and thermal cameras, to identify and fix the issues.
  • The LTC4368CMS-1#TRPBF is a high-voltage, high-current, and low-dropout linear regulator that is suitable for a wide range of applications, including industrial power supplies, automotive systems, and medical equipment. It's commonly used in applications that require high reliability, low noise, and high efficiency.
