LTC4368CMS-2#TRPBF - Analog Devices

Description: Surge Suppressors 100V OV, UV, OC and Reverse Supply Protection Controller with -3mV Reverse Threshold

Download LTC4368CMS-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

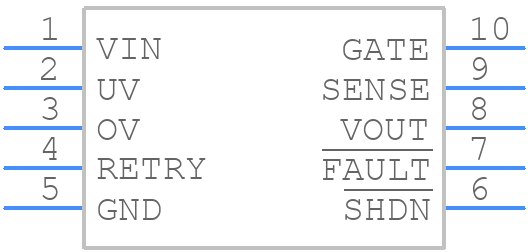

LTC4368CMS-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4368CMS-2#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 10Lead Plastic MSOP (ReferenceLTC DWG # 05-08-1661)
click to zoom
3D Models
LTC4368CMS-2#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS Package 10Lead Plastic MSOP (ReferenceLTC DWG # 05-08-1661)
click to zoom

LTC4368CMS-2#TRPBF Details

  • Manufacturer Part Number:

    LTC4368CMS-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4368CMS-2#TRPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC4368CMS-2#TRPBF is -40°C to 125°C.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, and make sure to meet the minimum input voltage and current requirements.
  • For optimal performance and thermal management, follow the recommended PCB layout guidelines in the datasheet, and ensure good thermal conductivity and heat dissipation through the use of thermal vias, heat sinks, and proper airflow.
  • To troubleshoot common issues, refer to the datasheet's troubleshooting section, and use tools such as oscilloscopes and logic analyzers to identify and diagnose the problem. Also, ensure that the device is properly configured and powered, and that the input voltage and current meet the recommended specifications.
  • Yes, the LTC4368CMS-2#TRPBF is designed for high-reliability and safety-critical applications, and meets various industry standards and certifications, such as AEC-Q100 and IEC 61508. However, it is essential to follow proper design and testing guidelines to ensure the device meets the specific requirements of the application.
