LTC4368HDD-2#PBF - Analog Devices

Description: Surge Suppressors 100V UV/OV & Reverse Prot Cntr w/ Bi-dir

Download LTC4368HDD-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

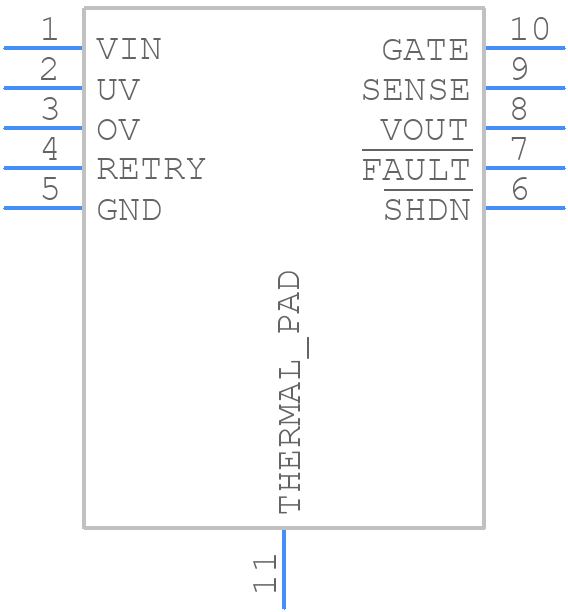

LTC4368HDD-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4368HDD-2#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-LEAD (3mm s 3mm) PLASTIC DFN*-*-
click to zoom
3D Models
LTC4368HDD-2#PBF - Analog Devices - 3D model - Small Outline No-lead - 10-LEAD (3mm s 3mm) PLASTIC DFN*-*-
click to zoom

LTC4368HDD-2#PBF Details

  • Manufacturer Part Number:

    LTC4368HDD-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    SEATED HT-CALCULATED

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4368HDD-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4368HDD-2#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the maximum input voltage. The output capacitor should have a low ESR and be rated for the maximum output voltage. A minimum capacitance of 10uF is recommended for both input and output capacitors. X5R or X7R ceramic capacitors are good options.
  • The LTC4368HDD-2#PBF is rated for an ambient temperature range of -40°C to 125°C. However, the device's performance may degrade at high temperatures, and the maximum junction temperature should not exceed 150°C.
  • The LTC4368HDD-2#PBF requires a controlled power-up and power-down sequence to prevent damage. The input voltage should be applied before the enable pin is asserted, and the enable pin should be de-asserted before the input voltage is removed.
  • The recommended input voltage range for the LTC4368HDD-2#PBF is 4.5V to 80V. However, the device can operate with input voltages as low as 3.5V, but with reduced performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4368HDD-2#PBF Overview

Use the download button to access the LTC4368HDD-2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits
