LTC4368IMS-2#TRPBF - Analog Devices

Description: 100V UV/OV and Reverse Protection Controller with Bidirectional Circuit Breaker

Download LTC4368IMS-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

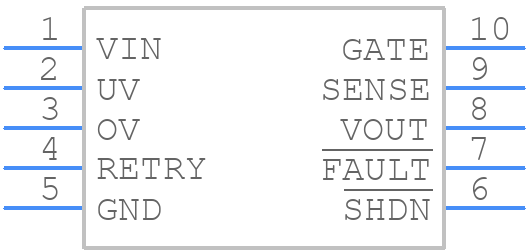

Symbol
LTC4368IMS-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4368IMS-2#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1661 Rev F)
click to zoom
3D Models
LTC4368IMS-2#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1661 Rev F)
click to zoom

LTC4368IMS-2#TRPBF Details

  • Manufacturer Part Number:

    LTC4368IMS-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4368IMS-2#TRPBF Frequently Asked Questions (FAQs)

  • The LTC4368 can handle surge currents up to 100A for 1ms, but it's recommended to limit the surge current to 50A for 1ms to ensure reliable operation.
  • The sense resistor value depends on the maximum current you want to measure and the desired accuracy. A good starting point is to use the formula Rsense = 0.05V / Imax, where Imax is the maximum current you want to measure. You can then adjust the value based on your specific requirements.
  • The EN (enable) pin is used to turn the device on and off. When EN is high, the device is enabled, and when EN is low, the device is disabled. You can use the EN pin to control the power consumption of the device or to implement a shutdown function in your system.
  • The fault flags FF1 and FF2 indicate overcurrent, undervoltage, and overvoltage conditions. FF1 is set when the input voltage is below the undervoltage threshold, and FF2 is set when the input voltage is above the overvoltage threshold or when an overcurrent condition is detected. You can use these flags to implement fault detection and protection in your system.
  • The recommended layout and placement for the LTC4368 involves keeping the sense lines short and away from noise sources, placing the device close to the power source, and using a solid ground plane to reduce noise and improve thermal performance. You should also follow the guidelines in the datasheet for PCB layout and thermal management.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4368IMS-2#TRPBF Overview

Use the download button to access the LTC4368IMS-2#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits
